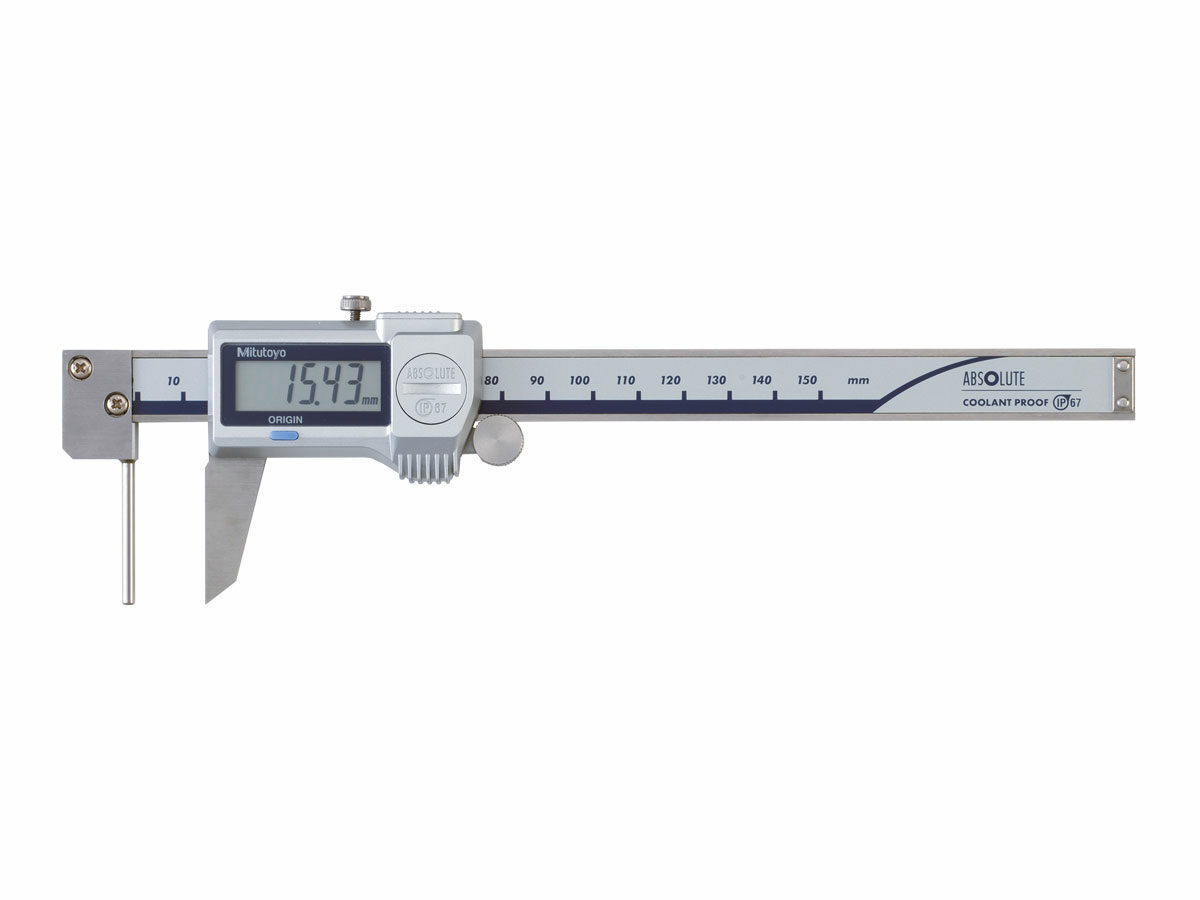

Mitutoyo Series 573 Absolute Digimatic Tube Thickness Caliper (Absolute-Digimatic-Tube-Thickness-Caliper)

    Mitutoyo Series 573 Absolute Digimatic Tube Thickness Caliper
    Starting at:

    $736.56 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      573-661-20
    • Tech Support Available
    • Product Weight: 2.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description



    • Has a round bar and blade type jaw
    • Can give precise measurements of tubes and pipes
    • Range is 0-150mm with accuracy rated at +/- 0.05mm
    • No overspeed errors
    • Can be used in areas exposed to oil, dust, and other particles
    • Scale does not need to be cleaned
    • Comes in a plastic case

    Additional Info

    • Technology: Digimatic
    • Length Standard: ABSOLUTE electromagnetic induction type linear encoder
    • Max Response Speed: Unlimited
    • Display: LCD
    • Battery: SR44 (1 pc.) 938882
    • Battery life: Approx. 5 years under normal use
    • IP Rating: IP67
    • SPC Output: Yes
    • Mass: 167g
    • Optional Accessories: 05CZA624, 05CZA625
