Mitutoyo Series 573 Absolute Digimatic Point Caliper (Absolute-Digimatic-Point-Caliper)

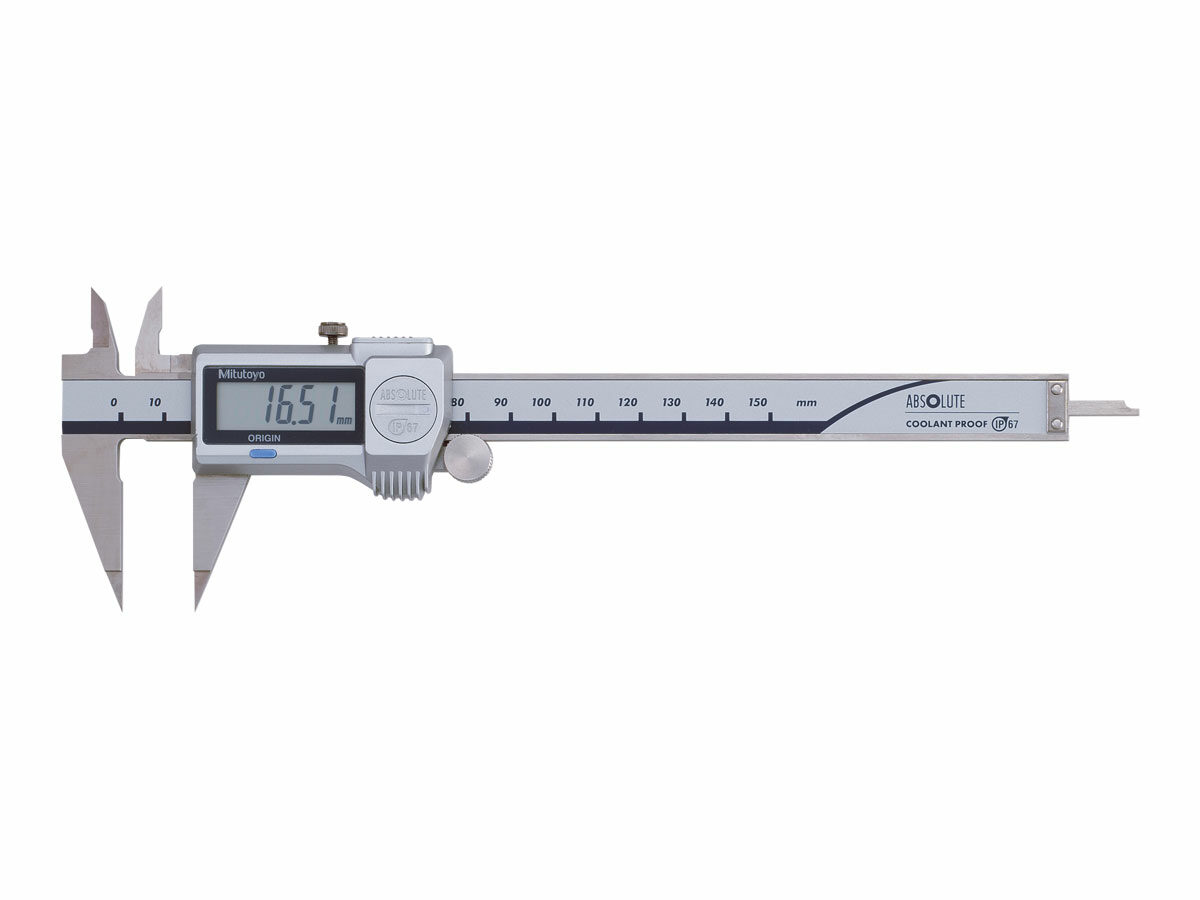

    Mitutoyo Series 573 Absolute Digimatic Point Caliper
    Starting at:

    $463.76 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      573-621-20
    • Tech Support Available
    • Product Weight: 2.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    • Has narrow tipped jaws for outside measurements
    • Can measure inside of small grooves and tracks
    • Step measurements can be made quick and easy with the depth bar
    • No overspeed errors
    • Can be used in areas exposed to oil, dust and other particles
    • Scale does not need to be cleaned
    • Includes calibration verification certificate
    • Comes in a plastic case

    Additional Info

    • Technology: Digimatic
    • Length Standard: ABSOLUTE electromagnetic induction type linear encoder
    • Max Response Speed: Unlimited
    • Display: LCD
    • Battery: SR44 (1 pc.) 938882
    • Battery life: Approx. 5 years under normal use
    • IP Rating: IP67
    • SPC Output: Yes
    • Mass: 163g
    • Optional Accessories: 05CZA624, 05CZA625
