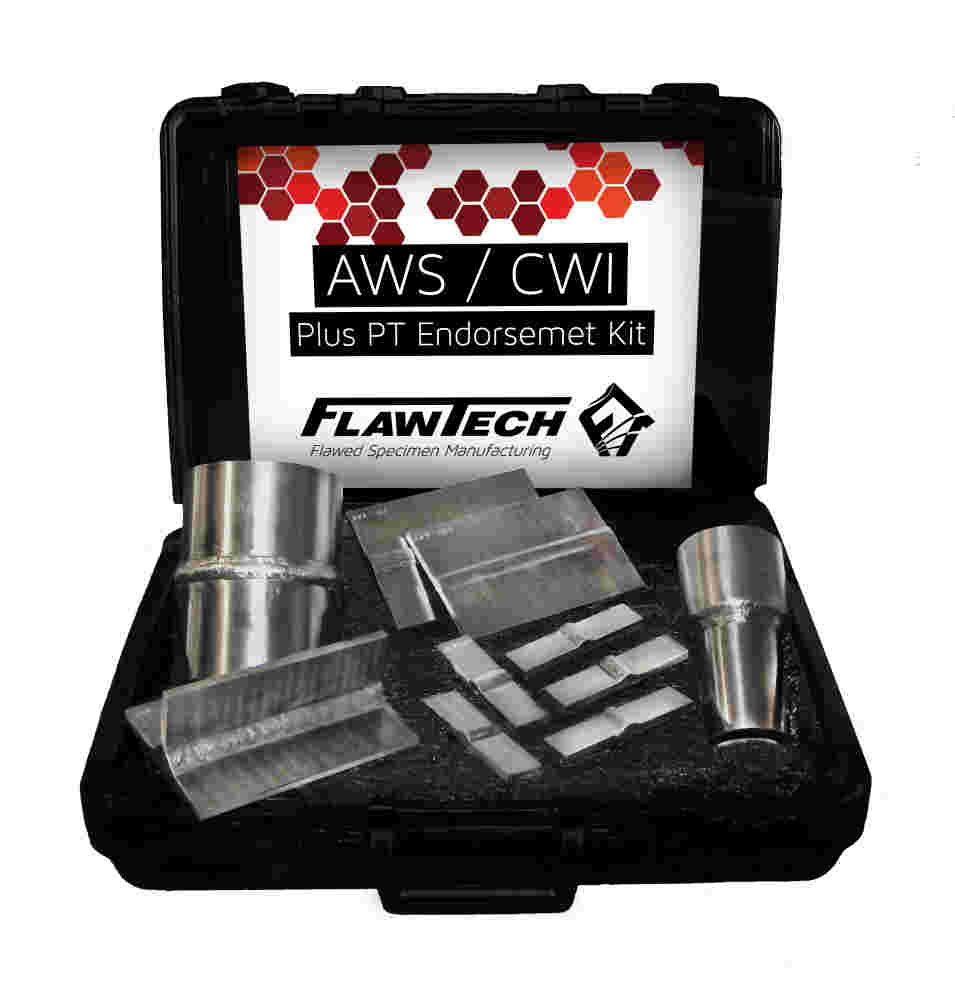

FlawTech AWS-CWI Penetrant Kit (AWS-K2)

    FlawTech AWS-CWI Penetrant Kit
    Starting at:

    $2,375.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      AWS-K2
    • Tech Support Available
    • Product Weight: 26.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    FlawTech AWS-CWI Penetrant Kit is specially made for primary penetrant inspection training and examination of the CWI. This kit contains 10 specimens, including 2 plates, 1 pipe, 1 tee, 1 socket weld, and 5 plates. There are two flaws per specimen, amounting to a total of 20 defects.

    Documentation Package Includes:

    • Certificate of Conformance
    • "As Built" CAD Drawings
    • Test Sheets

    Specs

    • Material: Carbon Steel
    • There are at least 2 flaws per specimen
    • 10 Specimens
    • (2) Plates: 4” x 6” x 0.25”
    • (1) Pipe: 4” SCH80 x 6”
    • (1) Tee: 4” x 6” x 2” x 0.25”
    • (1) Socket Weld:  2” SCH80 x 6”
    • (5) Plates: 1” x 4” x 0.25”
    • Welding Process: SMAW

    Package Includes

    • 10 Specimens
    • Documentation Package
    • 1 Free Carrying Case
