FlawTech AWS-CWI Visual Kit

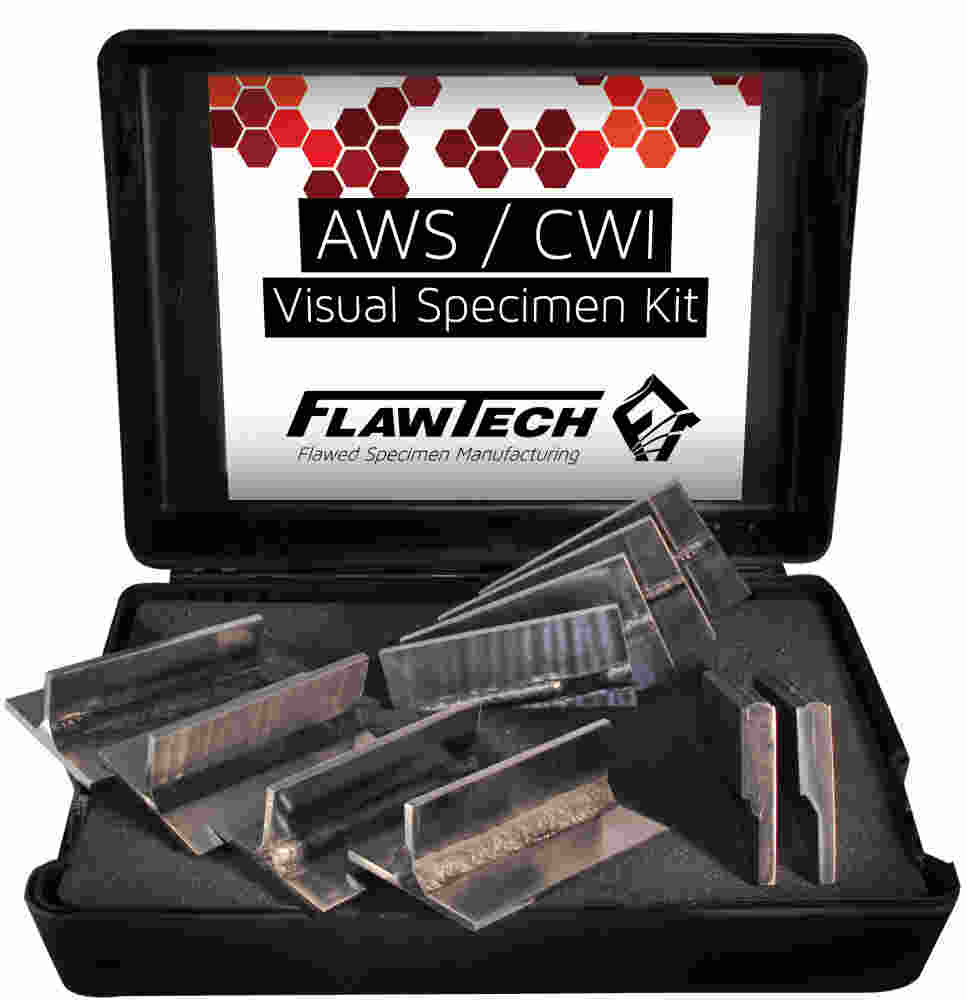

FlawTech's AWS/CWI Visual Kit's purpose is to provide you with a durable and easy to use tool for VT weld inspection. This kit has 10 specimens with, 4 tees, 4 plates, and 2 edge and lap joints. There are a total of 20 flaws, meaning that there are 2 flaws per specimen. For durability, the welding process used is SMAW (Shielded Metal Arc Welding).

The flaws included in this kit are intended to be debatable on whether they are acceptable or rejectable. This is meant to leave the final design to those doing the inspection.

Documentation Package Includes:

• Certificate of Conformance
• CAD Drawings
• Test Sheets

Flaws Included:

• Undercut

• Crater Crack

• Excessive Convexity

• Undersize Leg

• Cluster Porosity

• Arc Strike

• Overlap

• Longitudinal Crack

• Aligned Porosity

• Incomplete Penetration

• Excessive Reinforcement

• Underfill

• Concavity

• Transverse Crack

• Oversize Leg

Product Data Sheet

Product Catalog

• Material: Carbon Steel
• 2 flaws per specimen for a total of 20
• 10 Specimens
• (4) Tees 4″ x 6″ x 2″ x 0.25″
• (4) Plates 4″ x 6″ x 0.25″
• (2) Edge & Lap Joints 4″ x 6″ x 0.3125″
• Welding process - SMAW
