PH Tool Pipe Calibration Block (Conventional UT) (ASMEPIPE.434.3)

    PH Tool Pipe Calibration Block (Conventional UT)


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      ASMEPIPE.434.3
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    PH Tool manufactures hundreds of these ASME Angle Beam Blocks every year. A calibration block should be a section of pipe of the same nominal size, schedule, heat treatment, and material specification as the material being examined. PH Tool maintains a large inventory of raw material for the machining of these standards, or they can be made from customer-supplied material as well.

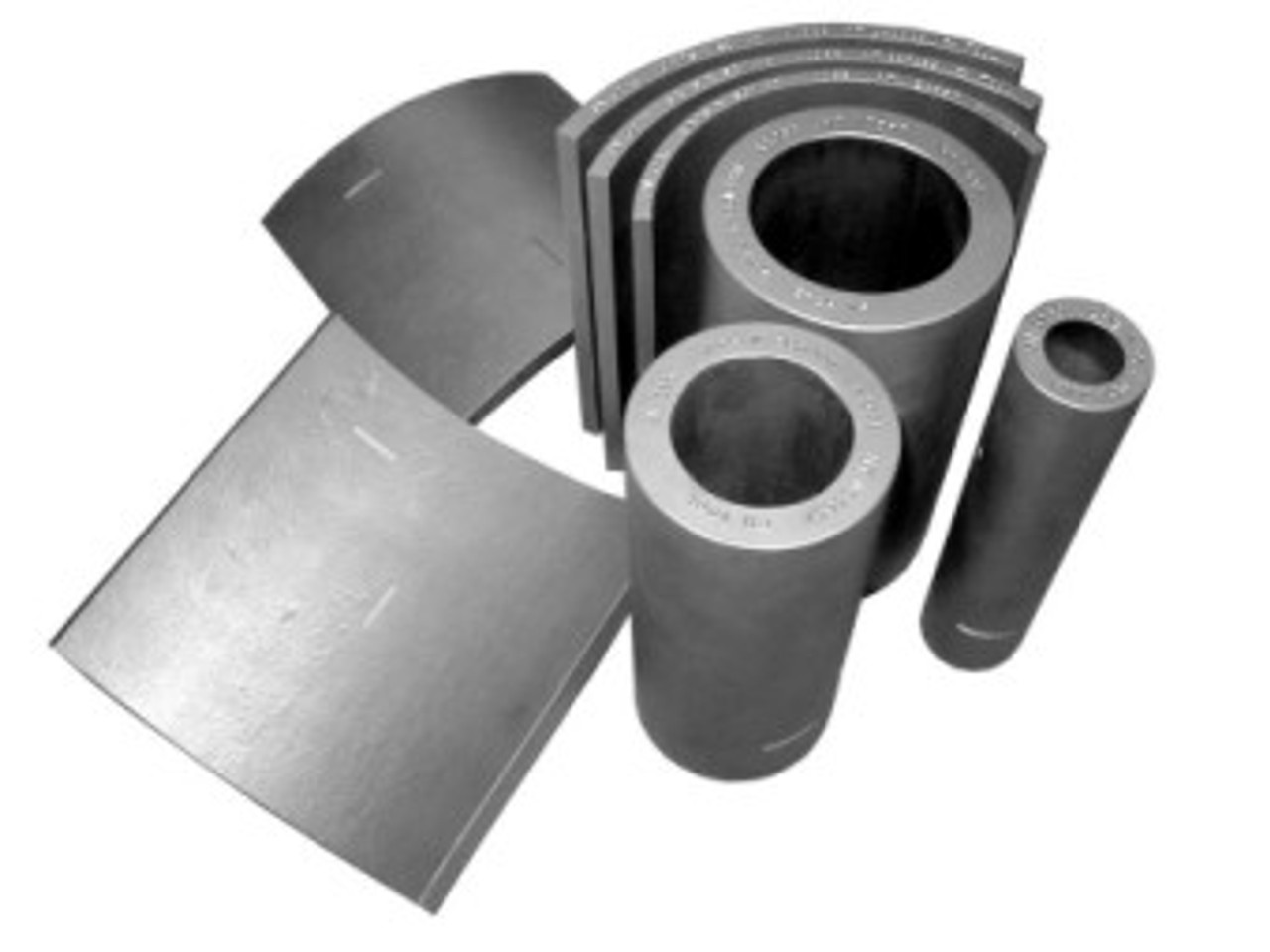

    ASME Angle Beam Calibration Blocks contain (4) EDM notches (axial and circumferential on both OD and ID) at a depth of 8-11% of nominal wall thickness x 1/4 max wide (most notches are approximately .020 - .030 wide) x 1.000 min long. Blocks 4 NPS and smaller are left at 360°, while blocks over 4 are milled to an 8 arc section. All blocks are 8 in axial length, or 8T, whichever is greater. Made in accordance with ASME Section V Article 4 Figure T-434.3. In small quantities, blocks can be shipped in approximately 1 week, with rush options always available. Larger quantities will take longer, however we're happy to do partial shipments.
