Synergys ASHOOTER Plus Laser Shaft Alignment System (ASHOOTER-PLUS)

    Synergys ASHOOTER Plus Laser Shaft Alignment System


    Quote Required Quote Required



    List Price Including Tariff Charges

    This product has been discontinued.


    • NEW Product
    • Product Codes:
      ASHOOTER-PLUS
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

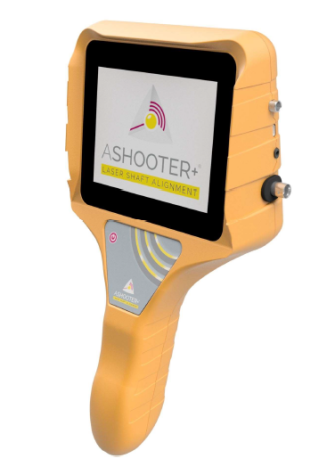

    This entry-level laser shaft alignment system for horizontal machines features wireless transducers with digital inclinometers and a high-resolution (0.001mm) 30mm CCD detector with a laser emitter. It offers editable misalignment tolerances, a 3D view with a flip function, and tools for soft foot checking and thermal growth compensation. The system supports LIVE mode for horizontal corrections and SHIM calculations for vertical corrections. Users can create editable reports with machine pictures via USB. It includes an embedded 160x120 px FLIR LEPTON infrared camera and a 5MP digital camera, with an optional vibration analysis program and sensor (VSHOOTER+®) available.

    BENEFITS OF LASER ALIGNMENT
    • Increased bearing lifetime
    • Increased machinery uptime, efficiency and productivity
    • Reduced wear on machine components
    • Reduced energy usage
    • Smooth running with reduced vibration and noise
    • Quick operation, measurement and adjustment

    FEATURES & SPECIFICATIONS
    • 30mm CCD laser detector with 0,001mm (1µm) resolution
    • For HORIZONTAL shaft alignment
    • SOFT FOOT checker & THERMAL compensation
    • TOLERANCE TABLE for shaft alignment
    • LIVE foot corrections for H plane
    • SHIMING calculations for V plane
    • 5,7” TOUCHSCREEN technology: Efficient, easier to use, faster to use
    • Embedded digital visible 5MP camera
    • ARM CORTEX A7 processor:  fast data acquisition & analysis
    • Li-Ion batteries:  Efficient, light, 6 hours use
    • Embedded FLIR LEPTON 160x120 px IR thermal camera
    • Reporting capabilities with machine picture to PC (USB)
    • With optionalVSHOOTER+ vibration analysis program and ICP sensor, strong magnet and light straight flexible cable (BNC)
    • Stereo headphone output
    • With professional ABS MAX465H220 transport case

    Features

    • Easy to mount and set up with dual line laser/sensor combination
    • Easy operation with step-by-step instructions given by the display unit
    • Built in tolerance limits depending on operating speed
    • Soft foot & Thermal compensation included
    • Results are stored in display unit and easily downloaded to PC

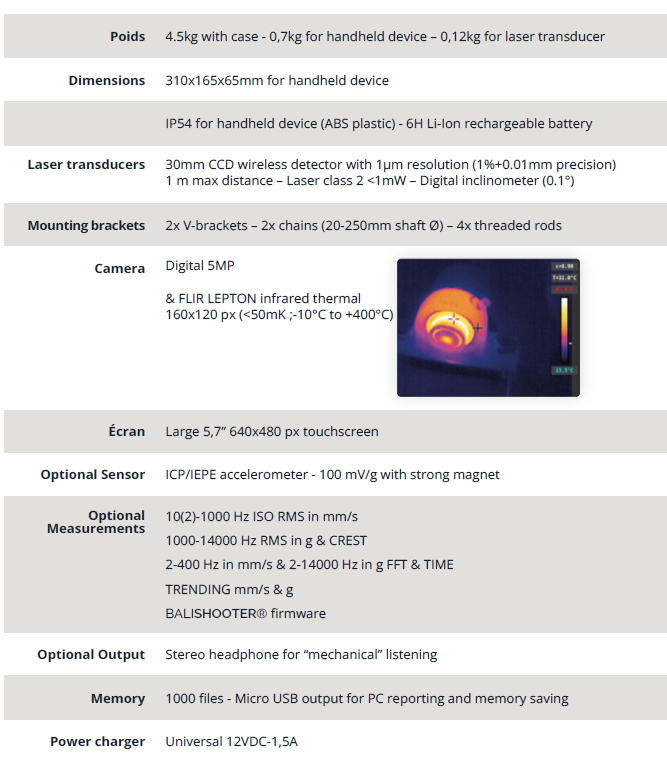

    Specs

    Additional Info
