FlawTech API-UT-1 Flawed Specimen Kit (API-K1)

    FlawTech API-UT-1 Flawed Specimen Kit
    Starting at:

    $5,045.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      API-K1
    • Tech Support Available
    • Product Weight: 230.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

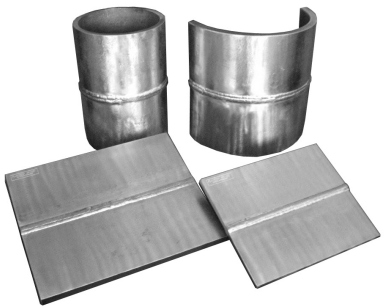

    If you're working with UT examination of ferritic welds, the FlawTech API-UT-1 kit is an excellent set. Provided in this kit are four specimens, each containing 2-4 flaws for a total of 12 flaws.

    Documentation Package Includes:

    • CAD Drawings
    • Certifcate of Conformance
    • Test Sheets

    Flaw Types:

    • Lack of Penetration
    • Center Line Crack
    • Slag Inclusion
    • Lack of Fusion
    • Root Crack
    • Porosity
    • Misalignment
    • Excess Penetration

    Request quote is needed for this product due to the heavy shipping weight.

    Specs

    • Material: Carbon Steel
    • Flaws: Total of 12 flaws. Flaws are randomly placed ~2-4 each specimen.
    • (1) Plate: 1.0″ Thick Plate w/ Double Vee (1″ x 12″ x 15″)
    • (1) Plate: 0.5″ Thick Plate w/ Single Vee (0.5″ x 10″ x 12″)
    • (1) Pipe: 8″ Sch80 (0.5″ Wall x 12″, 360°)
    • (1) Pipe: 12″ Sch80 (0.688″ Wall x 12″, 180° Seg.)
    • Flaw Tolerance: +/-0.080″

    API Kit Custom Options:

    • 10% ID / OD Calibration Notches
    • 0.75″ x 4.5 x 6″ ASME Sec. V Basic Calibration Block
    • Locking Storage Container
    • Radiographs

    Package Includes

    • 4 Specimens
    • Documentation Package
