ACS-Solutions A1610 BondVisor - Flaw Detector (A1610)

    ACS-Solutions A1610 BondVisor - Flaw Detector


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Code.:
      A1610
    • Tech Support Available
    • Product Weight: 2.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

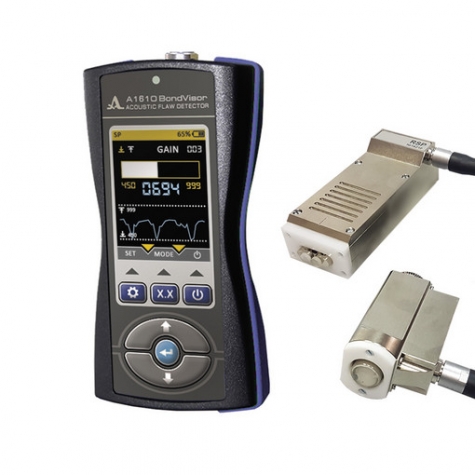

    ACS-Solutions, A1610 BondVisor is a handheld instrument for detecting delaminations and other material defects by manual scanning of the inspection area. Changes of the mechanical impedance created by defects and imperfections in laminated materials and honeycomb structures. The coupling of the sensor is done dry without coupling liquid. The constant pressure of the spring-loaded sensor guarantees stable and reliable indications.

    APPLICATION

    The main application field of the A1610 BondVisor is the non-destructive testing of laminated components and bondings.

    The instrument is applicable for the following materials and material combinations:
    • Multilayered laminates
    • Fiber-laminate materials
    • Laminate-honeycomb bonding
    • Laminate-metal bolding
    • Metal-metal bonding
    • Metal soldering
    • Metal-feltmetal brazing
    • Foams (hard and soft)
    • Wood laminates
    Possible sources of material defects:
    • Impact damages by foreign objects
    • Hail & lightning strikes
    • Loss of strength caused by heat
    • Thickness variations
    • Osmosis damages of fiberglass boats

    Features

    Features:

    • Rapid start: new operators do not need extensive training
    • Easy calibration: in-field automatic sensor calibration on the inspection object
    • Stable and reliable operation on rough / uneven surfaces due to spring-loaded sensor design
    • Customized sensor design for specific material combinations can be provided on bilateral agreement basis
