Parker A-410 AC Contour Probe (A-410-SERIES)

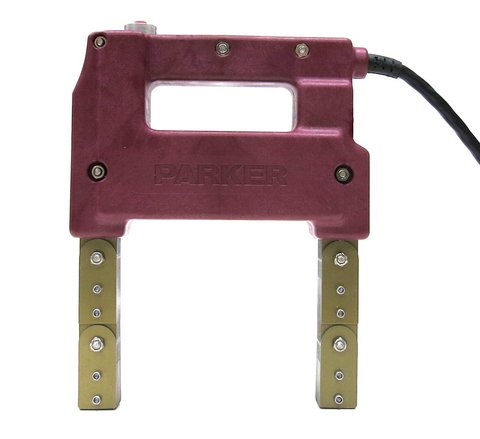

    Parker A-410 AC Contour Probe
    Starting at:

    $549.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      A-410
    • Tech Support Available
    • Product Weight: 26.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    One-Person Package

    The A-410 Contour Probe is a fully self-contained magnetic inspection tool. Designed for convenience and efficiency, it allows a single operator to conduct thorough and reliable inspections much faster than with larger, bulkier equipment.

    Precise Area Inspection

    Powerful magnetic fields are concentrated and applied to the precise area to be inspected. The construction of the A-410 Contour Probe allows for the replacement of all internal components.

    • IP51
    • Handheld AC Magnetic Yoke
    • Lightweight
    • Durable Molded Construction
    • Powerful AC Magnetic Field
    • Economical
    • One-Year Guarantee
    • Totally Repairable
    • Mechanically, the A-410 Probe will conform
    • to practically any surface configuration
    • Strong, constant AC fields
    • 230VAC model may be CE certified at an additional cost

    Due to shipping regulations, aerosols must ship via ground delivery.

    Optional Kits

    AKIT

    • Steel carrying case
    • 1 lb. Red Powder
    • 1 lb. Gray Powder
    • PB-1 Applicator

    Parker A Kit for Contour Probes

    PLA KIT

    • Super tuff plastic carrying case
    • 1 lb. Red Powder
    • 1 lb. Gray Powder
    • PB-1 Applicator

    Parker PL-A Kit for Contour Probes

    Features

    • High-impact, glass-filled nylon housing
    • AC Only
    • One year repair/replacement guarantee
    • Exceeds ASTM lifting standards

    Specs



      DA-400 DA-400S A-410 A-410S
    Physical 10 H × 8 L × 2.25 W
    Line Voltage Single Phase 115 VAC
    50/60 Hz
    230 VAC
    50/60 Hz
    115 VAC
    50/60 Hz
    230 VAC
    50/60 Hz
    Line Current 6 A
    AC/DC
    3 A
    AC/DC
    6 A
    AC
    3 A
    AC
    Duty Cycle 2 minutes on – 2 minutes off
    Weight 8.5 lbs (3.8 kg)
    Construction Glass-filled nylon housing
    10 foot (3 m) 3-wire power cord
    Span 12 in. (305 mm) across poles
    Field AC/DC AC/DC AC AC
