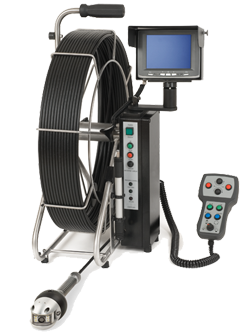

Ritec 75120 SKS RA Pan Rotate Push-Camera (77002)

Pan rotate push-camera for pipes from ID 100 up to ID 300 87° bends from ID 100

Includes following equipment:

Pan rotate-pushcamera RI 75120 SKS RA

• camera size: 75 mm in diameter, length 120 mm
• waterproof up to 2 bar
• pan range 250°, rotation endless ( slip rings )
• 90° pan function
• camerapicture mirrors, camerahead automatic reset
• self leveling picture, remote focus
• automatic shutter, LED-lighting
• monitor insert: pan- and rotation position in degree, distance in meter, pressure inside the camera in bar with alarm by falling pressure pan head rested with both sides bearings

Stainless steel reel with waterproof axle

• control electronic for all camera functions of the pan rotate camera in water proof metal housing
• water proof camera plugs
• 50 m push cable 7,5 mm in diameter
• arresting brake
• guide from frictionpoor special synthetic material
• prepared for changeable cameraheads
• video – out BNC
• video – in BNC
• working from 100V AC up to 240V AC
• remote control unit
