Ritec SKZ-Li Manhole Camera (70220)

    Ritec SKZ-Li Manhole Camera


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      70220
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

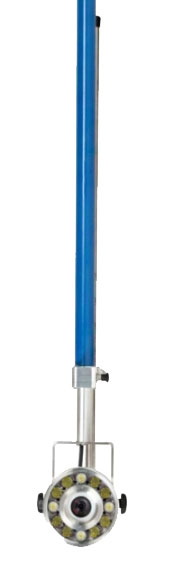

    Ritec SKZ-Li Manhole Camera, a color-TV-system for visual inspection of manholes, buildings, tanks, drains, and the cleaning performance in pipelines. For pipes and sewers from ID 200 mm (8"), with high operating distance including a zoom function (36x optical and 12x digital).

    Telescopic Carbon Pole, 2 m up to 7 m

    • Extendable continuous with quick release
    • Cable holder
    • Camera mountings
    • Centering and stabilization rod with quick release
    • 10 m camera cable (inside the telescopic pole) with waterproof push-pull – elbow plug, other length on request
    Camera Unit
    • 1/4“ CCD camera model
    • Zoom 36 x optical and 12 x digital
    • Horizontal resolution 530 TV - lines
    • Min. photosensitivity 1.4 lux
    • 12 high-power-LED far and near-range extra switchable
    • Waterproof push-pull socket
    • Camera holder
    • Camera housing (waterproof ca. 1 bar)
    • Valve (for pressure)
    • Adjustable centering and stabilization rod
    • Small bar to adjust the camera viewing axle
    Control Unit for Zoom - Manhole Camera
    • 12 V IN DC
    • All functions operating devices (Zoom, focus, lighting)
    • Housing
    • Switchable lighting (far and near)
    • Buttons for zoom
    • Buttons for focus
    • Buttons for automatical and manual focus
    • Buttons for brightness
    • Automatic and manual focus
    • Video OUT (BNC) for external monitor or memory devices
    • Camera push-pull socket
    • Power push-pull socket
    • Integrated TFT – monitor 5.6“
    • Sun protection shield
    • SD-memory card-slot for saving of single pictures or video sequences
    • SD-card 4 GB (up to max. 32 GB upgrade possible)
    • Easy handling with integrated buttons
    Accumulator 36V/2.6 Ah incl. Recharger
    • Accumulator developed especially for the needs of the Ritec construction 12 V IN DC
    • Lithium ion technique – made in Germany
    • Quick-change mount
    • Sturdy housing
    • Sturdy and comfortable electric plug connection
    • Test-button for loading status
    Transport Case for Control Unit and Accumulator

    Additional Info

     Brochure
