Fluke i200 AC Current Clamp (664755)

    Fluke i200 AC Current Clamp
    Starting at:

    $150.00 1. Quote Required

    ONLY 1 LEFT IN-STOCK

    This product has been discontinued.


    • Product Codes:
      664755
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    ONLY 1 LEFT IN STOCK

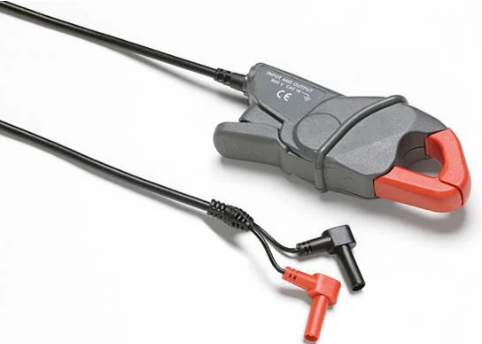

    The i200 is a 200 A clamp-on AC current clamp with a single range and provides current output through safety-covered banana plugs. In contrast, the i200s offers dual range functionality of 20 A and 200 A, delivering a voltage output via a safety-insulated BNC connector. To facilitate connection to multimeters with banana inputs, the i200s includes a dual banana to BNC adapter. The i200 is designed to be compatible with most Fluke multimeters and any other current measuring devices that accept shrouded banana plugs.

    Features

    • Companion to a DMM for measuring up to 200 A AC
    • 1 mA per Amp output guarantees easy reading on you meter
    • Take accurate current readings without breaking the circuit
    • Max. conductor Ø 20 mm
    • CAT III 600 V safety rating

    Additional Info
