Fischer Technology Probe FS24 (605-441)

    Fischer Technology Probe FS24
    Starting at:

    $2,150.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      605-441
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

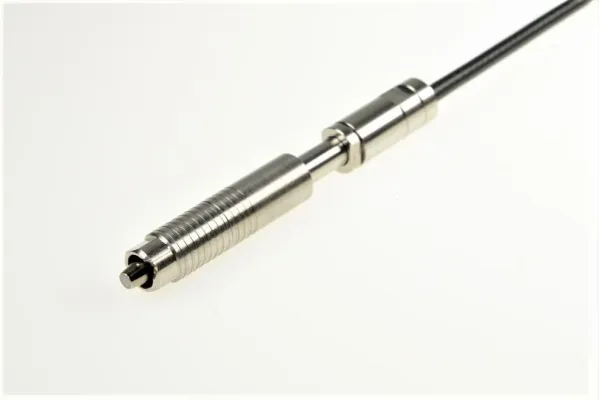

    Plug-in cabled eddy current probe for measuring the specific electrical conductivity of non-ferrous metals according to DIN EN 2004-1 and ASTM E 1004.

    Areas of application:
    – Sorting of materials or parts
    – Conclusions about heat damage and material fatigue
    – Conclusions about material hardness and tensile strength
    – Determining the purity of metals
    – Measure for the quality of alloys
    – Measuring area 3.3 mm diameter
    – Small edge influence of 3 mm

    Cable length: 1.5 m

    Price includes Cu calibration standard (without certificate). In order to function as a complete measurement system, this probe requires a Fischer measuring instrument.

    Can be connected to the following instruments: SIGMASCOPE® SMP350
