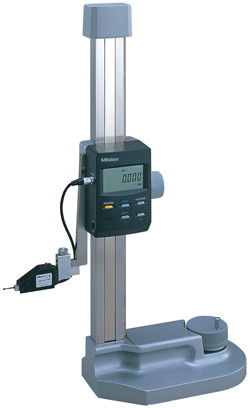

Mitutoyo High Precision Height Gage 0-18in/450mm (574-211-1A)

FEATURES:

• Provides resolution of .0001” / 0.001mm on the large LCD readout for accurate measurements.
• Excellent functionality and easy operation.
• The standard bi-directional touch-signal probe provides improved efficiency and reliability of measurement for the Heightmatic.
• Optional carbide-tipped scribers are available.
• With SPC data output.

Technical Data

Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Repeatability: .0001” / 0.001mm
Resolution: 0.001mm or .0001"/0.001mm
Display: LCD, 6-digit
Power supply: Via AC adapter

Function

Zero-setting, Presetting, Probe tip diameter compensation, -/+ switching, Data hold, Data output, inch/mm conversion
(inch/mm models)
Alarm: Counting value composition error

Standard Accessories

574-007: Touch-Signal Probe
901385: Scriber Clamp
525694A: AC Adapter
