  • Mitutoyo Vernier Caliper with Nib Style and Standard Jaws

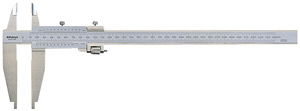

Mitutoyo Vernier Caliper with Nib Style and Standard Jaws (533-503)

    Mitutoyo Vernier Caliper with Nib Style and Standard Jaws


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      533-503
    • Original Code:
      533-503
    • Tech Support Available
    • Product Weight: 2.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    Measuring Range         Graduation           Accuracy (20° C)        Remarks

    0(10) - 280mm               0.02mm                  ± .04mm                    High accuracy model with parallax-free vernier

    Features:

  • The rounded faces of the jaws are ideal for accurate ID (inside diameter) measurement.
  • Inside and outside measurements can be directly read from the upper and lower slider graduations
  • With fine-adjustment carriage type is available
  • Parallax-free vernier scale type is available for easy and positive measurement.
  • Supplied in fitted plastic holster in carton. 18" / 450mm and larger supplied wooden case

    • Technical Data

    Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
    Graduation**: 0.02mm or 0.05mm
    Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
