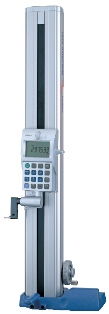

Mitutoyo QM-Height Series 518-High Precision ABSOLUTE Digital Height Gage 0-18.3 in/0-465mm (518-221)

    Mitutoyo QM-Height Series 518-High Precision ABSOLUTE Digital Height Gage 0-18.3 in/0-465mm




    DISCONTINUED

    This product has been discontinued.


    • Product Code.:
      518-221
    • Original Code:
      518-221
    • Tech Support Available
    • Product Weight: 50.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    Features:

    • Newly developed high accuracy and high resolution ABSOLUTE linear encoder for position detection.
    • Easy reference icon keys.
    • Possible to measure inside/outside diameter via unique process (detect the circle apex and process by tracing measurement).
    • Various types of optional probes are available.
    • Large size LCD with back light.
    • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
    • Slider elevation knob (for travel) / wheel (for measurement).
    • With SPC and RS-232C output.

    Technical Data

    • Measuring range: 0 - 18.3” or 0 - 28.1”0 - 465mm or 0 - 715mm
    • Slider stroke: 14” / 350mm or 24” / 600mm
    • Resolution: 0.001 / 0.005mm or 0.001 / 0.005mm / .00005” / .0001” / .0002”
    • Accuracy at 20°C: Refer to the list of specifications
    • Guiding method: Roller bearing
    • Drive method: Manual
    • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
    • Measuring force: 1.6±0.5N
    • Display: LCD
    • Power supply: AC adapter (optional) / battery (LR6x4)
    • Battery operation time: Approx. 260 hours(approx. 6 hours when using back light)
