Wilson 400 Series Knoop/ Vickers Tester

SKU: 400-series
$0.00

Discontinued

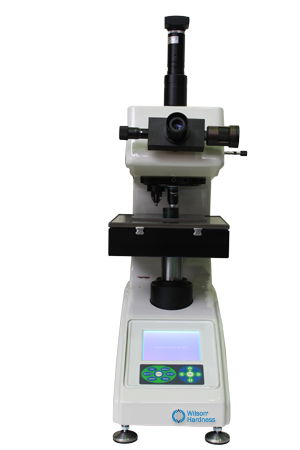

Wilson 400 Series Knoop/ Vickers Tester

Thumbnail Filmstrip of Wilson 400 Series Knoop/ Vickers Tester Images

    Product details

    Tech support available

    Product code
    400-series
    Original Code
    400-series
    Product weight
    0.00
    Purchase Wilson 400 Series Knoop/ Vickers Tester

    Wilson 400 Series Knoop/ Vickers Tester

    SKU: 400-series

    $0.00
    This product has been discontinued.

    Description


    The 400 Series Knoop/ Vickers Hardness Testers are versatile, user-friendly hardness testers for quality assurance or metallurgical research. Providing an affordable and reliable solution for accurate Vickers and Knoop hardness scale testing, the tester features an automatic turret and crisp optics that have a total magnification of 100x and 400x. The system features eight dial selectable test forces ranging from 10 gf- 2 kg (see specifications). For easy sample mounting, models are equipped with a 100 x 100 mm precision XY-Stage with 25 mm movement in each direction.



    Model overview 400-series

      402MVD 432SVD 452SVD
    Load range
         		 10 - 2000gf 0,3 - 30kgf
         		 1 - 50kgf
    Objectives
         		 10x & 40x
         		 10x & 20x 10x & 20x
    Camera & PC Software
         		 Option Option Option

    Additional Info
    Wilson 400 Series Knoop/ Vickers Tester
    Related Accessories
    Package Includes

    Product details

    Tech support available

    Product code
    400-series
    Original Code
    400-series
    Product weight
    0.00

    Product Heading content

    Technical Specifications




    402MVD

    432SVD

     452SVD
    Hardness Scales Knoop & Vickers
    Test Loads 10, 25, 50, 100, 200, 300, 500, 1000 (2000) gf 0,3 - 0,5 - 1 - 3 - 5 - 10 - 20 - 30 kgf
         		 1 - 2 - 3 - 5 - 10 - 20 - 30 - 50 kgf
    Test Force Application Deadweight
    Test Load Selection Dial

    Accuracy according to EN-ISO 6507, ASTM E384 and E92, and JIS

    Load Control Automatisch (loading, dwell, unloading)
    Dwell time
         		 5 - 99 Seconds

    Turret Automatiscj

    Eyepiece
         		 10x
    Digital Encoder Resolution 0.1µm

    Objectives 10x, 40x 10x, 20x
    Total Magnification 400x (for measurement)
    100x & 200x

    (for measurement)
    100x & 200x

    (for measurement)

    Measuring Range 100x (for observation), 200µm

    Optical Path 2-way switchable: eyepiece/camera

    Filter Green & Blue

    Beleutung Halogenlampe

    Display Length of diagonal, hardness converted value, test force

    Hardness Value 5-digit

    Diagonal Length 4-digit (D1, D2)

    Data Output Eingebautendrucker, RS 232

    Statistics Number, Average, Standard deviation, Range

    Conversion Brinell, Rockwell, Superfical Rockwell, Tensile Strength

    Maximum Specimen Height 85 mm (2.55 in) 210 mm (8.2 in)

    Depth from the Centerline 120 mm (3.35 in) 160 mm (6.3 in)

    XY-Stage Dimensions 100 x 100 mm Optional Optional
    Y-Stage Travel Range 25 x 25 mm
    Minimum Reading 0.01 mm
    Operating Temperature Range: 10° to 38°C (50° to 100°F)

    Humidity 10% - 90% non-condensing

    Dimensions 513 x 320 X 470 mm
    (20.2 x 12.6 x 18.5 in)    		 566 x 320 X 710 mm
    (22.3 x 12.6 x 28.0 in)


    Weight 36 kg (79.4 lbs) 55 kg (121 lbs)
    Power Supply 110 - 220V AC, 60/50Hz
