Proceq Equotip Live UCI Portable Hardness Tester (35810021)

    Proceq Equotip Live UCI Portable Hardness Tester
    Starting at:

    $5,645.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Code.:
      35810021
    • Tech Support Available
    • Product Weight: 5.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

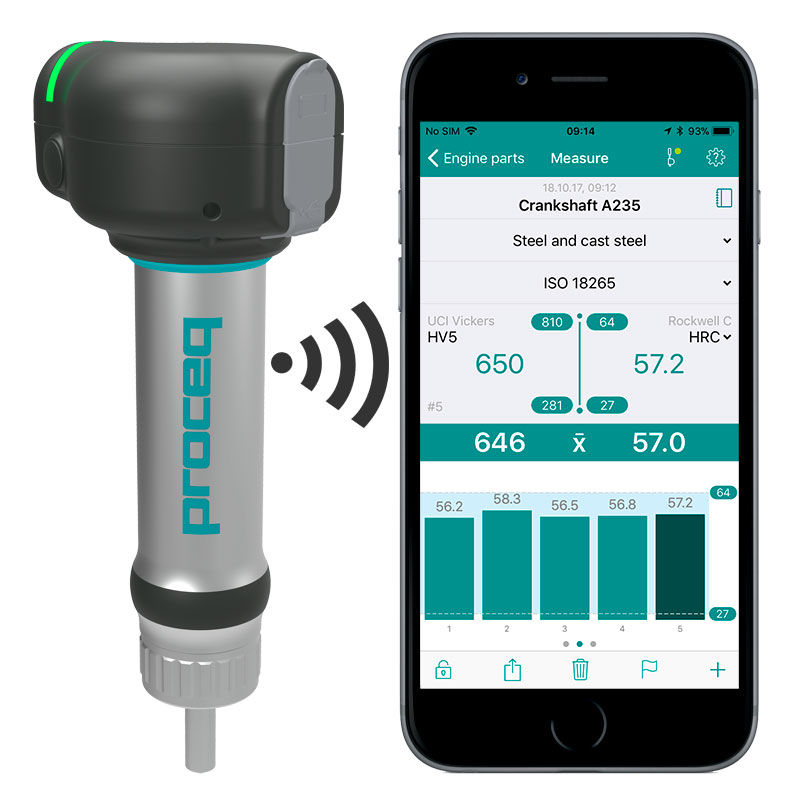

    Proceq has created the world's first wireless Ultrasonic Contact Impedance (UCI) tester, the Equotip Live UCI HV1-HV10. The Equotip Live UCI enables you to collaborate in real-time, globally for all of your hardness testing procedures. The Equotip Live iOS app allows you to conduct measurements at a distant location and provides instant access of your results to your team. There is no need for a physical USB stick or sending reports manually by email - all data is stored in the cloud and is accessible via live.proceq.com.

    The Proceq Equotip Live UCI HV1-HV10 portable hardness device is web-enabled. The unit has a clean user interface and an auto-sync feature that allows you to transfer data anywhere. Reports can be shared electronically with any device you choose.

    Ultra-portable, the Proceq Equotip Live UCI device allows multiple users to share the same impact device and multiple devices can connect to the Equotip Live app.

    The Equotip Live app simplifies hardness testing through an expert-designed, intuitive interface, predefined shortcuts for fast measurements and operation, audio reading outputs for hands-free operation of your app device and on-screen guides that walk you through its operation.

    Centralized reporting through live.proceq.com includes profile management, data history and logging, and continuous cloud backup so you will always have access to your readings.

    Features

    Equotip® Live UCI with its patented design offers many features including:

    • Wireless Connectivity
    • Real-time Data Sharing
    • Expert-designed, clean user-interface including predefined shortcuts for fast measuring and handling
    • Cloud Backup for Data
    • Ability to share reports in real-time worldwide
    • Logbook for full data traceability
    • Audio output of readings allow you to keep mobile device hands-free
    • Ability to add media to measurements
    • Suitable for confined spaces

    The unit has the following physical features and benefits:

    • AA Battery compartment
    • Compatible with existing Proceq accessories
    • Removable Bluetooth 4.0 low energy module - Internet of Things (IoT)
    • USB connector for charging and firmware updates
    • On/Off button

    Applications:

    Standard to large objects

    Yes

    Round objects

    Yes

    Light objects

    Yes

    Very hard objects

    Yes

    Cast objects

    No

    Polished objects

    Yes

    Limited accessibility

    No

    Thin Objects

    No

    Heat treated surfaces

    Yes



    Videos

    Specs

    Proceq Equotip Live UCI Model Specifications

    Native Scale

    HV (UCI)

    Measuring Range

    20 - 2000 HV

    Measuring Accuracy

    ± 2% (150 - 950 HV)

    Available Scales

    HB, HV, HLD, HRA, HRB, HRC, HR15N, HR15T, MPA

    Available Probes

    Universal probe with adjustable test load between HV1 and HV10

    Average Roughness Ra (µm / µinch)

    12.5 / 500

    Minimum Mass (kg / lbs)

    0.3 / 0.66

    Minimum Thickness (mm / inch)

    5 / 0.2

    Standards & Guidelines

    Standards

    ASTM A 1038
    ASTM E 140
    DIN 50159
    ISO 18265

    Guidelines

    DGZfP Guideline MC 1
    VDI / VDE Guideline 2616 Paper 1
    ASME CRTD-91





    Package Includes

    • Equotip Live UCI HV1-HV10 probe
    • Micro USB cable
    • Bluetooth module and full connectivity to mobile device. 2 year reporting feature included.
    • Rechargeable AA battery
    • Documentation
    • Carrying strap and carrying case
