Proceq Equotip Portable Rockwell Probe 50 N (35600600)

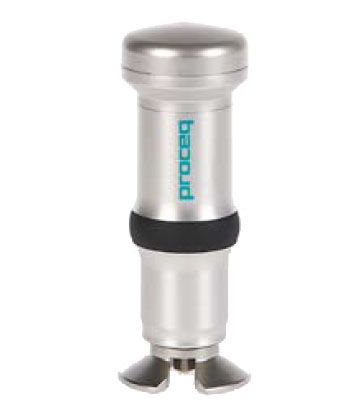

    Proceq Equotip Portable Rockwell Probe 50 N
    Starting at:

    $6,040.00 1. Quote Required



    This product has been discontinued.

    • NEW Product
    • Product Code:
      35600600
    • Tech Support Available
    • Product Weight: 5.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    The Proceq Portable Rockwell Probe 50 N is best suited for scratch-sensitive, polished and thin parts. It features excellent sensitivity through small penetration of a few micrometers.

    Features

    Proceq Equotip Portable Rockwell 50 N Probe Features:

    Specially For Thin Parts

    Particularly suited for scratchsensitive and polished parts or on thin parts, profiles and pipes. The required minimum thickness for a reliable hardness reading is ten times the indentation depth. For the mass there is no minimum requirement.

    Broad Hardness Scales Coverage

    Measurements in HRC and HV with automatic integrated conversions to HB, HRA, HRB and many more common scales in compliance to ASTM E140 and ISO 18265.

    Suits Various Sample Geometries

    Unique measuring clamp and support feet are available for the probe allowing tests to be carried out on various geometries.

    For Any Environment

    The Equotip 550 Portable Rockwell can be utilized for on-site, factory and lab environment with almost no limitation.

     Applications:

    Standard to large objects

    Yes

    Round objects

    Yes

    Light objects

    Yes

    Very hard objects

    Yes

    Cast objects

    No

    Polished objects

    Yes

    Limited accessibility

    No

    Thin objects

    Yes

    Heat treated surfaces

    No

    Additional Applcations:

    Prime mover hydraulic cylinder
    Automotive parts
    Differences in alloys
    Accuracy for small components
    Thin walled metal pipes
    Composite materials
    Steel rings
    Watch components
    Aging roadway metals
    Heavy and bulky forging dies
    Extruded aluminium
    Medical wires
    Small components
    Leeb and Portable Rockwell combined
    Thermal cutting
    Gigantic saws

    Specs

    Proceq Equotip Portable Rockewell Probe 50 N specifications:

    Native Scale

    µm, µinch

    Resolution

    0.1 µm; 0.1 HRC; 1 HV

    Measuring Range

    0 - 100 µm; 19 - 70 HRC; 35 - 1000 HV

    Measuring Accuracy

    ± 0.8 µm; ~ ± 1.0 HRC over entire range

    Available Scales

    HB, HV, HRA, HRB, HRC, R15N, HR15T, HMMRC, MPA

    Test loads

    Preload 10 N / Total Load 50 N

    Diamond indenter

    Angle 100.0° ± 0.5°, diameter of flat area of 60 µm ± 0.5 µm

    Available Probes

    Portable Rockwell Probe 50N (can also be connected directly to PC)

    Average Roughness Ra (µm / µinch)

    2 / 80

    Minimum Mass (kg / lbs)

    No requirement

    Minimum Thickness (mm / inch)

    10 x indendation depth

    Dimensions

    Ø 40 mm, Length 115 mm



    Standards

    DIN 50157

    Guidelines

    DGZfP Guideline MC 1
    VDI / VDE Guideline 2616 Paper 1
    Nordtest Technical Reports 424-1, 424-2, 424-3



    Package Includes

    Equotip Portable Rockwell Probe 50 N consisting of:

    • Equotip Portable Rockwell Probe 50 N
    • Probe Cable
    • Protective Rubber Sleeve
    • Test Block ~62HRC
    • Documentation
    • Carrying Case
