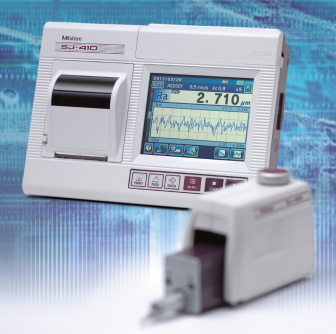

Mitutoyo SJ-412 Portable Surface Roughness Tester 4mN (178-583-12A)

    Mitutoyo SJ-412 Portable Surface Roughness Tester 4mN
    Starting at:

    $9,680.00 1. Quote Required



    This product has been discontinued.


    • Product Code.:
      178-583-12A
    • Tech Support Available
    • Product Weight: 6.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    The new SJ-411/412 has numerous innovative features combined with high accuracy and a competitive price makes this instrument the new leader in its class

    Features:

    • Large 5.7” color LCD with touch screen improves operability and achieves high visibility.
    • It conforms to the roughness standards JIS-B0601-2001, JIS-B0601-1994, JIS-B0601-1982, VDA, ISO-1997 and ANSI.
    • Blueprint design code can be easily keyed in to set evaluation conditions.
    • It corresponds to cissoidal calculations in which one measurement can evaluate two different conditions.
    • A simple contour analysis function is also included. (4 types: step, step amount, area and coordinate difference).
    • D.A.T. (Digital Adjustment Tilting) function is also included for easy work piece leveling.
    • Statistic measurements up to 3 parameters of 300 samples can be performed showing average, standard deviation, max, min, pass rate and histogram.
    • Up to ten measurement conditions and the stored data can be called out and displayed and printed out by the built-in thermal printer.
    • The total measurement and sectional measurement results can be displayed as well as the evaluation curve, BAC/ADC curve.
    • The display unit supports all three types of Standard, S-Drive and R-Drive units.16 languages can be selected and are switchable
    • A maximum of 5 custom styli can be recorded and calibrated independently

    Specs

    Model

    SJ-411

    SJ-412

    Order No.

    178-581-01A

    178-581-02A

    178-583-01A

    178-583-02A

    Measurement range(Resolution)

    8μm (0.000125μm),

    80μm (0.00125μm),

    800μm (0.0125μm), Auto

    Measurement speed

    0.05, 0.1, 0.2, 0.5, 1mm/s

    Return speed

    0.5, 1, 2mm/s

    Sampling length

    0.08, 0.25, 0.8, 2.5, 8, 25mm

    Number of sampling lengths

    x1~x20, xL

    Battery capacity

    1000 measurement (approx.)

    Time required for recharging battery

    Max. 4h

    Waiting time for auto-sleep

    30~600s (only w/battery)

    RS-232C speed

    9600, 19200, 38400

    Detector

    0.75mN

    4mN

    0.75mN

    4mN

    Drive unit

    Standard
