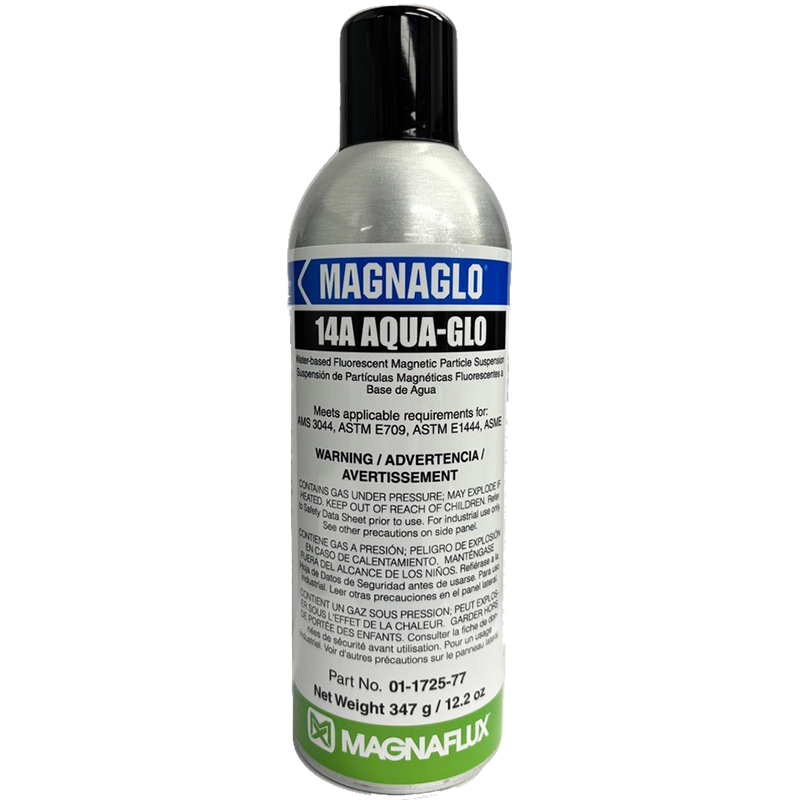

MagnaFlux 14A Aqua-Glo (01-1725-78)

    MagnaFlux 14A Aqua-Glo
    Starting at:

    $360.00 1. Quote Required



    Click Here to view the product replaced by this product.

    This product has been discontinued.


    • NEW Product
    • Product Codes:
      01-1725-78
    • Tech Support Available
    • Product Weight: 14.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    ALL AEROSOLS MUST BE SHIPPED VIA GROUND

    Water-Based Fluorescent Magnetic Particle Suspension

    14A Aqua-Glo is a highly sensitive, water-based magnetic particle suspension designed for detecting very fine discontinuities in critical and hard-to-reach areas. It combines the benefits of a water bath with the convenience of portable packaging, making it ideal for spot inspections and situations where bulk processing is impractical.

    This non-flammable formula contains high-sensitivity 14A fluorescent magnetic particles, primarily used for field testing with a portable magnetic field generator. Ready-to-use, 14A Aqua-Glo creates bright yellow-green fluorescent indications under ultraviolet light, ensuring clear and accurate inspections.

    Applied to magnetized parts before inspection, 14A Aqua-Glo detects cracks, seams, inclusions, laps, tears, and flakes, whether on the surface or slightly sub-surface. It is suitable for testing forgings, welds, and similar components.

    Features

    • Increases indication detection with 14A particles
    • Find smaller, finer indications in critical applications using the highly sensitive, strong ferromagnetic 14A fluorescent particles
    • Optimized particle size and shape help particles move freely to stick to a wide variety of discontinuities with less particle clumping
    • Minimizes inspection time
    • Clear, bright fluorescent indications form quickly due to the highly fluorescent, highly mobile 14A magnetic particles
    • Minimal background fluorescence help indications stand out more so inspectors need to spend less time examining each part
    • Convenient to use
    • Portable aerosol format can be easily carried to job site and is ready to use out of the box

    Additional Info
