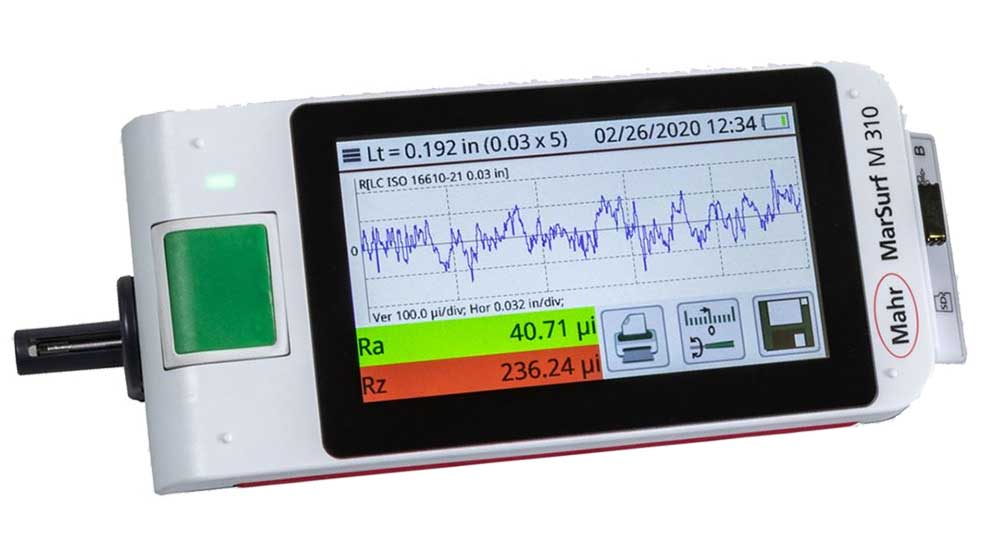

The Mahr MarSurf M-310 Surface Roughness Gage offers easy operation, portability and a robust, dirt and dust resistant housing. The MarSurf M-310 system features either 2 μm or 5 μm styluses, a color screen, and is compatible with smartphones. Data can be accessed at any time from any location. If printing on-site is essential, an optional Bluetooth thermal printer will work or simply connect via USB to most standard printers.
Intuitive Operation & Bluetooth Connectivity
The MarSurf M-310 features an icon-driven GUI allowing any user to use it with virtually no training. Pre-programmed functionalities and an automatic filter selection, enables you to use it with no specialist knowledge. All data is transmitted via Bluetooth or USB cable.
Plenty of Storage, Long Battery Life & Lightweight
The MarSurf M-310 can store over 3,900 profiles with up to 500,000 results and 1,500 PDF records. With expandable memory up to 32 GB on a Micro SD card, you will be able to perform testing for extended periods before needing to download results. The rechargeable lithium-ion battery will last for up to 1,200 measurements. At just under 12 pounds, the M-310 will be able to travel with you wherever you need to go to perform your testing.
| Part Number | 6910260 | 6910265 | 6910267 | 6910268 |
| Type | M310 | M310 with printer | ||
| Parameters | A1, A2, Ar, CF, CL, CR, Mr1, Mr2, R, R3z, RPc, RS, RSk, RSm, Ra, Rk, Rmax, Rmr (tp (JIS, ASME) is equivalent to Rmr), Rp, RpA (ASME), Rpk, Rpm, Rpm (ASME), Rq, Rt, Rvk, Rx, Rz, Rz (JIS), Rz (Ry (JIS) is equivalent to Rz), Vo | |||
| Measuring Units | mm/in | |||
| Stylus | 2 μm | 5 μm | 2 μm | 5 μm |
| Calibration Function | Dynamic; Ra, Rz, Rsm | |||
| Storage Capacity | Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable to 32 GB with Micro SD card |
|||
| Languages | Available in 17 languages | |||
| Other | Lock/password protected, date/time | |||
| Data Interface | USB A, USB B, MarConnect (bidirectional), Micro SD slot for SD / SDHC cards up to 32 GB |
|||
| System of Protection | IP 40 | |||
| Rechargeable Batteries | Lithium-ion battery, min 1200 measurements | |||
| Wide Range Power Supply | 100 V to 264 V | |||
| H x W x D | 160 mm x 77 mm x 50 mm | |||
| Weight | 4.7 kg / 10.4 lbs | 5.7 kg / 12.6 lbs | ||
| Measuring Principle | Stylus method | |||
| Probe | Inductive skidded probe | |||
| Measuring Range | 0.350 mm | |||
| Profile Resolution | 8 nm | |||
| Filter According to ISO/JIS |
Gaussian filter as per ISO 16610– 21 (formerly ISO 11562), special filter as per |
|||
| Cutoff Ic According to ISO/JIS/ASME | 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection, variable | |||
| Number n of Sampling Length According to ISO/JIS/ASME | Selectable: 1 to 16 | |||
| Short Stroke Under ISO/JIS/ASME | Selectable | |||
| Traversing Length Lt According ISO/JIS/ASME | 1.5 mm, 4.8 mm, 15 mm, N x Lc, variable, automatic | |||
| Traversing Length According ISO 12085 (MOTIF) | 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm | |||
| Evaluation Length According to ISO/JIS/ASME | 1.25 mm, 4.0 mm, 12.5 mm | |||
| Measuring Force | 0.00075 N | |||
