Waygate Krautkramer AWS Resolution Block Carbon Steel (118-540-350)

    Waygate Krautkramer AWS Resolution Block Carbon Steel
    Starting at:

    $657.00 1. Quote Required



    • Product Code:
      118-540-350
    • Original Code:
      118-540-350
    • Tech Support Available
    • Product Weight: 8.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

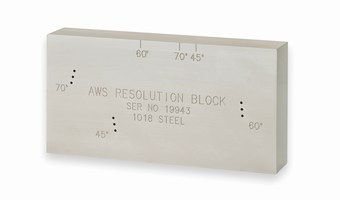

    Also called an RC block, the Waygate Technologies Krautkramer AWS Resolution Reference Block, a Baker Hughes business product (formerly GE Inspection Technologies), is used for checking resolution capabilities of angle beam transducers and is made of carbon steel. Contains three sets of .0625" diameter through-holes for 45°, 60° and 70°. In accordance with AWS Welding Highway and Railway Bridges specification D2.0, and Structural Welding Code ANSI/AWS D1.1.

    • Dimensions: 6.000" x 3.000" x 1.000" (152.4 mm x 76.2 mm x 25.4 mm)
    • AWS does not specify a separate metric version of the AWS Resolution block. The metric block in AWS shows only the metric equivalents to the standard design. Therefore, this one block can be used for both inch and metric requirements.
    • Made from 1018 Steel, Nickel-plated
    • Fitted wooden storage case optional

    Features

    • Made of nickel-plated carbon steel
    • Contains three sets of .0625" diameter through-holes for 45°, 60° and 70°
    • Measures both imperial and metric
