NewSonic Leeb Hardness Test Blocks

SKU: NS-LEEB-BLOCKS

$0.00

Thumbnail Filmstrip of NewSonic Leeb Hardness Test Blocks Images

Product codes: NS-0578088, NS-2231450, NS-0578096, NS-2231468, NS-0578100, NS-2231476, NS-0578118, NS-2231484, NS-0578126, NS-2231492, NS-0578134, NS-0578134-DAKKS, NS-0578142, NS-215071, NS-0578169
Original Code
Original Code 2
NSN

Product weight: 1.00

Purchase NewSonic Leeb Hardness Test Blocks

NewSonic Leeb Hardness Test Blocks

SKU: NS-LEEB-BLOCKS

$0.00

Quantity	Price
1 +	$0.00

Select HLD Value:

Add DAKKS calibration for one block and one test load per DIN EN ISO 6507-3. Add +$221.00

This product has been discontinued.

Description

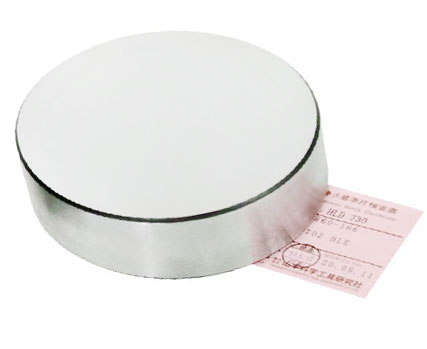

The NewSonic Leeb Hardness Test Blocks are made of tool steel and are 1150 x 330 mm in diameter. Leeb Test Blocks are one-side factory calibrated and include a certificate. HLD values are 520 ±15, 630 ±15, 730 ±15, 830 ±15, and 880 ±15.

NewSonic Two-fold DAKKS calibrated blocks are also made from tool steel and have a diameter of 89 x 55 mm. DAKKS calibration may be added to other blocks as well.HLD values for the two-fold blocks are 490 ±15, 660 ±15, and 780 ±15.

Package Includes

Specifications

Block	HLD Value	HV Value
NS-215060	520 ±15	ca. 245
NS-215061	630 ±15	ca. 370
NS-215062	730 ±15	ca. 560
NS-215063	830 ±15	ca. 770
NS-215064	880 ±15	ca. 940
Dimensions	1150 x 330 mm

Block	HLD Value	HV Value
NS-215080	780 ±15	ca.650
NS-215070	490 ±15	ca. 210
NS-215071	660 ±15	ca. 420
NS-215072	780 ±15	ca. 650
Dimensions	89 x 55 mm

Product codes: NS-0578088, NS-2231450, NS-0578096, NS-2231468, NS-0578100, NS-2231476, NS-0578118, NS-2231484, NS-0578126, NS-2231492, NS-0578134, NS-0578134-DAKKS, NS-0578142, NS-215071, NS-0578169
Original Code
Original Code 2
NSN

Product weight: 1.00
