MagnaFlux EV6000 MG UV-LED Light Kit (MF-626779)

Close Window

DISCONTINUED

Package Information

Product Code.:
MF-626779

Tech Support Available
Product Weight: 21.00

Government Buyers?

Have a Question?

HAVE A QUESTION?

Call: 1-847-577-3980

Send an Email

Hours: 8:00 am to 4:30 pm CST

Description

TheMagnaflux EV6000 MG UV-LED Light Kit is a lightweight UV lamp used in virtually any fluorescent magnetic particle testing. This kit is ASTM E3022, RRES 90061, NADCAP, and OEM certified. The rugged design of the lamp includes fully-sealed, IP65 rated, housing that will withstand the elements. While the custom-designed optics provide intense UV-A coverage, an integrated filter ensures minimal visible light emission to improve inspection reliability. Also utilized are cool-running LEDs, which keep inspection booths from heating up, and a fanless cooling system that further reduces the energy consumption of the lamp while improving operator safety.

The high-intensity LEDs provide one of the widest, most even beams on the market (9"), speeding up inspection time by making indications clearly visible. All EV6000s meet or exceed all current specifications for fluorescent liquid penetrant testing and ship with a manufacturer's certificate of conformance. 14AM magnetic particles and SKC-S cleaner are included as part of the fluorescent penetrant testing kit.

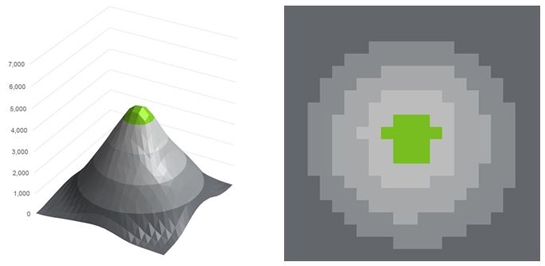

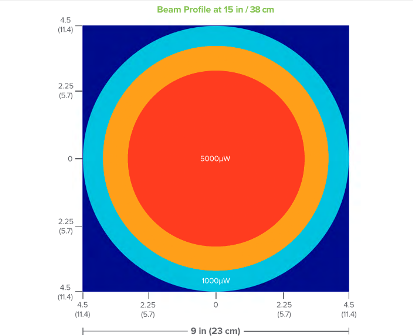

Beam Profile

Features

9" (23 cm) wide, uniform circular beam
No hot-spots in the beam profile
Rugged, durable design
Fanless Cooling System
Low energy consumption
Aerospace prime and OEM certified
Improved operator and environmental safety

Videos

Specs

Maximum Irradiance	5,000 μW/cm²
Peak Wavelength	365 ±5 nm
Typical Beam Profile at 15" (38 cm)	Circular spot, 9" (23 cm) diameter, > 1,000 μW/cm² UV-A intensity
Excitation Irradiance (347-382 nm) at 15" (38 cm)	≥ 2,000 μW/cm²
Working Distances ASTM RRES 90061	Min. WD ≤ 6" (13 cm) Min. WD = 15" (38 cm) Max. WD = 36" (92 cm)
Typical Visible Emission ASTM RRES 90061 range (390-800 nm)	≤ 2 ft-candles* ≤ 20 lux at 15" (38 cm) (min. WD) ≤ 5 lux at 36" (92 cm) (max. WD)
Stabilization Time (ambient conditions)	5 minutes
Lamp Cord Length	17 ft / 5.18 m
Power Supply Cord Length	9 ft / 2.75 m
Weight	2 lb / 0.9 kg
Power In	100-240 VAC / 50-60 Hz / < 1 A
Specification Compliance	ASTM E2297 ASTM E3022 ISO 3059 RRES 90061
Fluorescent Penetrant Testing Specifications / Standards:	ASME BPVC ASTM E165 ASTM E1417 ASTM F601 ISO 3452 NADCAP AC7114/1
Fluorescent Magnetic Particle Testing Specifications / Standards:	ASME BPVC ASTM E709 ASTM E1444 ASTM E3024 ISO 9934 NADCAP AC7114/2
