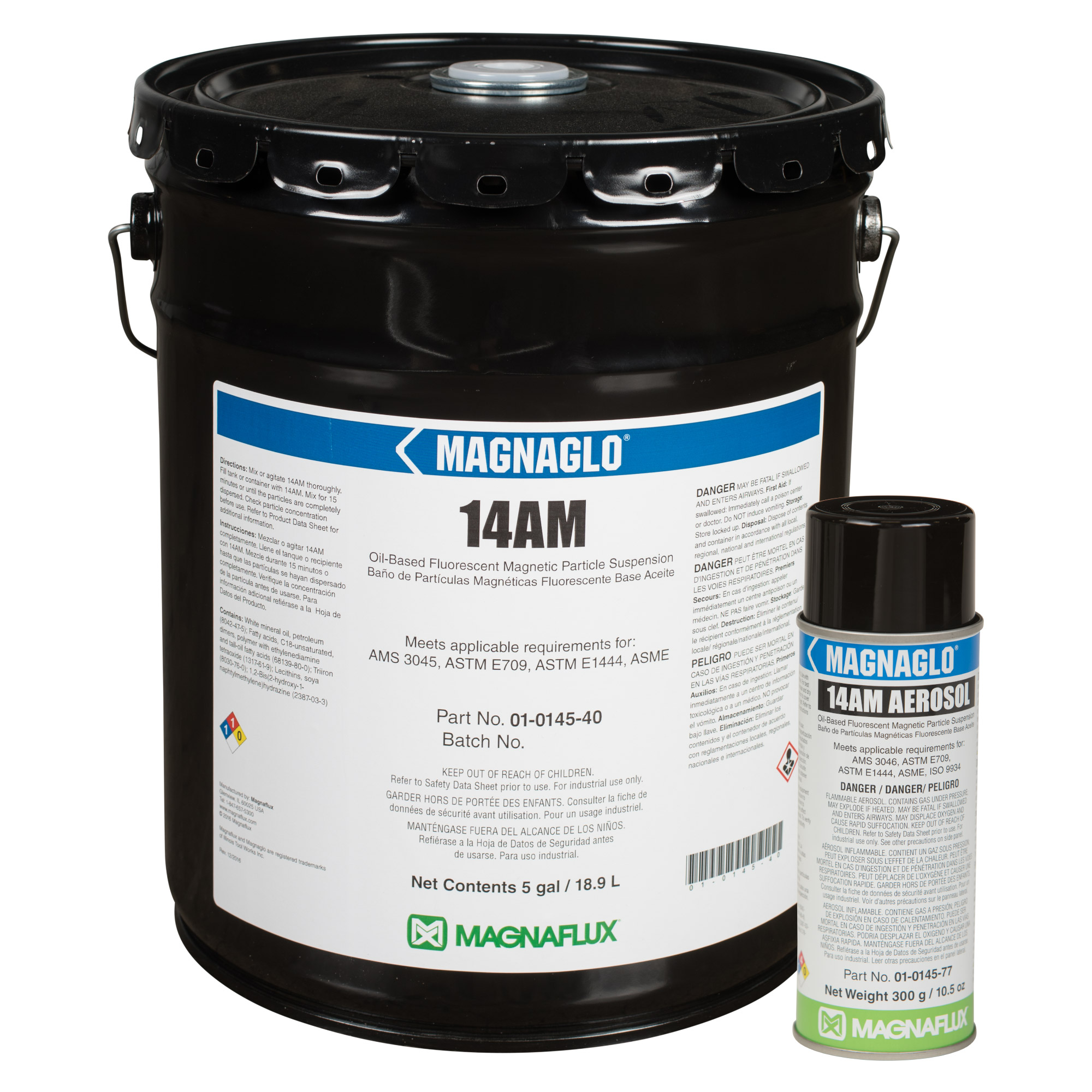

MagnaFlux Magnaglo 14AM Oil-Based Fluorescent Magnetic Particle Suspension (01-0145)

    MagnaFlux Magnaglo 14AM Oil-Based Fluorescent Magnetic Particle Suspension
    Starting at:

    $246.00 1. Quote Required

    IN STOCK

    • Product Code:
      01-0145
    • Tech Support Available
    • Product Weight: 38.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    Magnaflux Magnaglo 14AM is a ready-to-use, prepared magnetic particle suspension liquid for locating very fine discontinuities in critical parts by offering clear, bright, fluorescent green indications for superior and accurate detection of flaws.

    High-performance Magnaglo 14AM combines Magnaflux’s industry-best 14A magnetic particles with Carrier II NDT-approved suspension oil for fast, repeatable mag particle testing which requires less maintenance.

    Magnaglo 14AM is best suited for high-performance inspections of components under high-stress or precision safety-critical parts. The suspension will also extend the life of valuable mag particle equipment.

    Magnaglo 14AM meets all major industry and NDT specification requirements, including Aerospace, ASTM and ISO 9934.

    Benefits

    • Increases indication detection with 14A particles: Find smaller, finer indications in critical applications using the highly sensitive, strong ferromagnetic 14A particle
    • Minimizes inspection time: Minimal background fluorescence help indications stand out more so inspectors need to spend less time examining each part. Increases inspection speed and reliability by quickly wetting the entire test surface.
    • Improve inspection consistency and reliability: Maintain magnetic particle system performance over greater periods of time thanks to the highly-durable, easily-dispersed 14A fluorescent particles
    • Decreases maintenance: Magnetic particle baths last longer due to slow evaporation, and is less susceptible to contamination from bacteria or fungus
    • Convenient & versatile: Can be used for virtually all magnetic particle inspections with conformance to all major international magnetic particle testing specifications

    Applications: Magnaglo® 14AM is used to locate fine surface and slightly subsurface discontinuities such as: inclusions, seams, shrink cracks, tears, laps, flakes, welding defects, grinding cracks, quenching cracks and fatigue cracks.

     Due to shipping regulations, aerosols must ship via ground delivery.

    Features

    • Ready-to-use
    • Low maintenance, oil-based suspension
    • High sensitivity
    • Excellent fluorescent contrast
    • Excellent particle mobility
    • Optimized particle size and shape distribution
    • Durable particles
    • Good dispersion stability
    • Available in a variety of different formats
    • Protects parts and equipment against corrosion
    • Provides superior wetting and surface coverage
    • Low maintenance oil-based suspension
    • Very low toxicity
    • High flash point

    Videos

    Specs

    Specifications Compliance

    • AMS 2641
    • AMS 3046
    • ASTM E709
    • ASTM E1444
    • ASME BPVC
    • ISO 9934
    • MIL-STD-2132
    • MIL-STD-271
    • NAVSEA 250-1500-1
