PH Tool "CUT" Board Original - Corrosion UT Test Plate (C03133.AL)

Close Window

Starting at:

$3,200.00 1. Quote Required

Package Information

NEW Product
Product Code.:
C03133.AL

Tech Support Available
Product Weight: 0.00

Government Buyers?

Have a Question?

HAVE A QUESTION?

Call: 1-847-577-3980

Send an Email

Hours: 8:00 am to 4:30 pm CST

Description

When it comes to NDT reference standards, precision and realism are paramount. The "CUT" Board™ Original - Corrosion UT Test Plate is the ultimate solution for professionals seeking a high-quality, realistic training and demonstration tool. Designed to simulate real-world corrosion scenarios with unmatched accuracy, this versatile plate is crafted in either carbon steel or aluminum, and measures a practical .375" thick by 12.00" x 18.00".

An Advanced Training and Testing Tool

The "CUT" Board is meticulously engineered to enhance the training of NDT personnel, qualify inspectors, and demonstrate the ultrasonic thickness (UT) measurement capabilities of conventional or phased array ultrasonic testing (PAUT) instruments. Every detail of this board is designed with functionality and precision in mind, ensuring a realistic and practical experience for users.

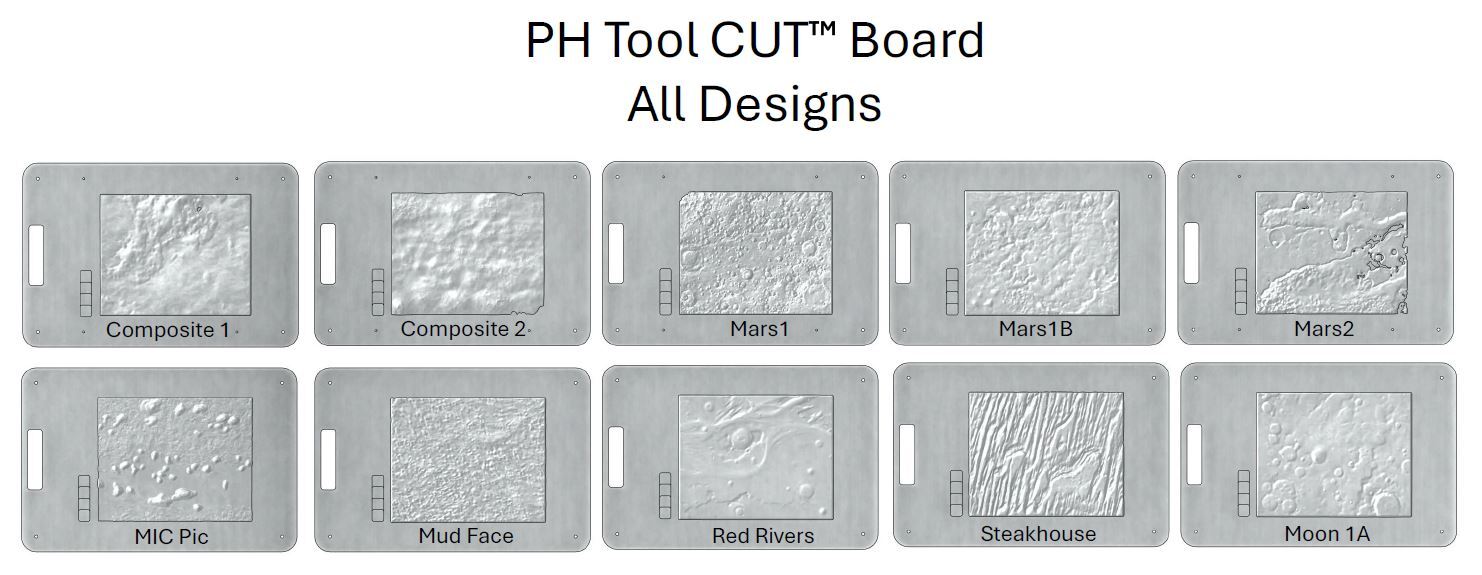

Choose from 10 unique patterns

Please inquire with Berg Engineering & Sales if you would like specific information on the nature of each pattern.

Features

Proprietary Corrosion Simulation

A unique, CNC-milled, and abrasively finished pattern replicates artificial corrosion with remarkable realism. This proprietary process ensures users encounter lifelike conditions for an accurate representation of real-world challenges.

Precision Grid for Easy Navigation

The scanning surface is equipped with a machine-engraved grid of letters and numbers, allowing users to quickly isolate and identify features in the corrosion pattern. The low point of corrosion is carefully positioned to fall within a single grid cell for clarity and accuracy. This means there is only one correct answer as to where the point of deepest corrosion lies.

Integrated Step Block

An embedded step block provides thickness ranges of .075", .150", .225", .300", and .375", with dual-unit engravings in inches and millimeters. This addition allows for thorough calibration and accurate measurements during training.

Cloaking Plate for Blind Testing

A removable cloaking plate can be applied to the back of the board, concealing the corrosion pattern to facilitate unbiased training or personnel qualification tests. For added anonymity, the plate hides a laser-engraved QR code containing the board’s serial number and identification information.

Optimized for Stability and Transport

Designed for practicality, the "CUT" Board includes a machined carrying handle for effortless transport and rubberized feet in each corner to ensure stability during use. A custom-fitted Pelican Case is also available to keep your investment protected.

Compatibility with Industry-Leading Scanners

Fully optimized for use with the Olympus Hydroform Scanner, the "CUT" Board is a seamless addition to any testing environment, delivering unmatched compatibility and ease of use.
