MagnaFlux EV6000 UV-LED Light (MF-625784)

    MagnaFlux EV6000 UV-LED Light
    Starting at:

    $2,385.00


    Click Here to view the product replaced by this product.

    This product has been discontinued.


    • Product Codes:
      MF-625784
    • Tech Support Available
    • Product Weight: 6.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

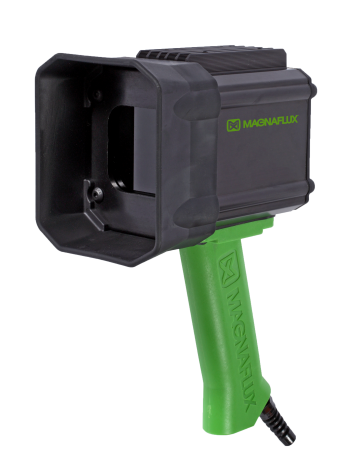

    The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

    The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

    Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

    The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

    NOTE: Handheld UV lamps were temporarily manufactured with black handles from approximately July 2022 to mid-June 2023.

    Minimizes time to inspect parts

    • Speeds up inspection time with one of the widest, most even beams on the market
    • Indications are clearly visible even at the edge of the 9 inch / 23 cm beam, thanks to the high intensity LEDs

    Maximize range of inspections

    • Use for virtually any fluorescent penetrant or mag particle inspection
    • Inspect a wide range of components, including aerospace parts, without worry
    • Full NDT specification compliance, including ASTM E3022 and RRES 90061

    Increases real-world reliability

    • Reduces on-the-job downtime with dependable, reinforced construction
    • Fully sealed IP65 rated housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections

    Features

    • 5,000 μW/cm2 maximum irradiance at 15 in / 38 cm
    • 9 in / 23 cm wide, uniform circular beam
    • Light weight at only 2.8 lbs/ 1.3 kg
    • No hot-spots in the beam profile
    • IP65 rated, rugged, durable design
    • No internal fan
    • Low energy consumption
    • Aerospace prime and OEM certified
    • Improved operator and environmental safety
    • Certified to ASTM / RRES / NADCAP

    Videos

    Specs

     Maximum Irradiance at 15" (38 cm)

     5,000 μW/cm2

     Peak Wavelength

     365 ±5 nm

     Typical Beam Profile At 15" (38 cm)

     Circular spot, 9" (23 cm) diameter, > 1,000 μW/cm2 UV-A intensity

     Excitation Irradiance (347-382 nm)

     ≥ 2,000 μW/cm2

     Working Distances

    ASTM

    RRES 90061

     Min. WD ≤ 6" (13 cm)

    Min. WD = 15" (38 cm)

    Max. WD = 36" (92 cm)

     Typical Visible Emission

    ASTM

    RRES 90061

    range (390-800 nm)

     ≤ 2 ft-candles*

    ≤ 20 lux at 15 " (38 cm)
    (min. WD)

    ≤ 5 lux at 36" (92 cm)
    (max. WD)

     Stabilization Time (ambient conditions)

     5 minutes

     Lamp Cord Length

     17 ft / 5.18 m

     Power Supply Cord Length

     9 ft / 2.75 m

     Weight

     2 lb / 0.9 kg

     Power In

     100-240 VAC / 50-60 Hz / < 1 A

     Specification Compliance

     ASTM E2297
    ASTM E3022
    ISO 3059
    RRES 90061

     Fluorescent Penetrant Testing Specifications / Standards:

     ASME BPVC
    ASTM E165
    ASTM E1417
    ASTM F601
    ISO 3452
    NADCAP AC7114/1

     Fluorescent Magnetic Particle Testing Specifications / Standards:

     ASME BPVC
    ASTM E709
    ASTM E1444
    ASTM E3024
    ISO 9934
    NADCAP AC7114/2
