FlawTech ASME Section XI Appendix VII Kit: Supplement 2 Kit for Austenitic Piping (S2-K1)

    FlawTech ASME Section XI Appendix VII Kit: Supplement 2 Kit for Austenitic Piping
    Starting at:

    $39,725.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Code.:
      S2-K1
    • Tech Support Available
    • Product Weight: 360.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    This FlawTech ASME Section XI Appendix VII Kit: Supplement 2 Kit for Austenitic Piping comprises of 5 specimens with 22 unflawed units, and 10 flawed units. Flawed and unflawed units vary per specimen. This kit meets many codes such as ASME boiler and pressure vessel code, section XI, appendix VII, and supplement 2 for austenitic piping. This product has a critical tolerance of +/- 0.040" (1MM).


    Specs

    Kit Specifications
    • The kits are manufactured to meet the minimum requirements of ASME boiler & pressure vessel code, Section XI, Appendix VIII, of Supplement 2.
    • At least 50% of the cracks will be coincident with fabricated conditions such as ground & “as-welded” crowns, counterbores & weld root conditions.
    • Flaw depths will range from the 10-30% through the 61-100% depth ranges as specified in ASME Section XI, Appendix VIII.
    • All flaws will be mechanical fatigue or thermal fatigue cracks with at least 75% of the cracks being thermal fatigue.
    • Critical tolerance: +/- 0.040” (1MM)
    • Kit weight ~360 lbs (due to weight, special shipping considerations apply)

    Package Includes

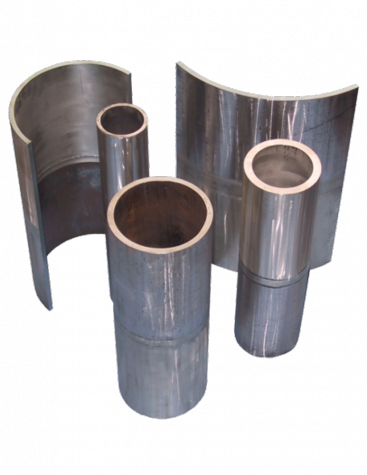

    Package Includes: 5 Specimens; 22 Unflawed Units, 10 Flawed Units

    • Stainless Steel Welded Piping (2″ Sch80 x 24″L x 360° Seg.); 1 Unflawed Unit, 1 Flawed Unit
    • Stainless Steel Welded Piping (4″ Sch80 x 24″L x 360° Seg.); 3 Unflawed Units, 1 Flawed Unit
    • Stainless Steel Welded Piping (6″ Sch160 x 24″L x 360° Seg.); 4 Unflawed Units, 2 Flawed Units
    • Stainless Steel Welded Piping (12″ Sch80s x 24″L x 360° Seg.); 9 Unflawed Units, 3 Flawed Units
    • Stainless Steel Welded Piping (24″ Sch80s x 24″L x 120° Seg.); 5 Unflawed Units, 3 Flawed Units Kit
