Berg Rental - USN58 Ultrasonic Flaw Detector (R-USN58)

    Berg Rental - USN58 Ultrasonic Flaw Detector


    Quote Required Quote Required



    This product has been discontinued.


    • Product Code.:
      R-USN58
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    PDF Brochure

    Rental Package includes:

    • USN58 Flaw Detector
    • Battery Charger
    • Operating Manual
    • Carry Case
    • ISO 17025 Certificate of Calibration
    • Other items available upon request, must specify, may increase package cost

    Please contact Berg Engineering at 1-847-577-3980 for package rental cost and availability.

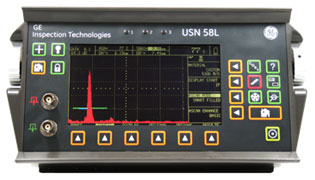

    USN 58 - Portable Ultrasonic Flaw Detector for Use in Direct Sunlight

    The USN 58 is a portable ultrasonic flaw detector with color transreflective LCD display, fast 60 Hz update rate, and optimum viewing in direct sunlight. The USN 58 replaces the popular USN 50L and 52L instruments, and upholds the USN Series reputation for being top performing, rugged, dependable field instruments.

    Two user-friendly rotary knobs allow users to make fast operating adjustments very easily. The rotary knobs can be easily locked by pressing the lock key on the front panel. A .040 to 480 inch range in steel combined with 15 to 2000 PRF (pulse repetition frequency) covers a wide range of applications without incurring acoustic wrap around. Four damping settings and ten frequency selections from 250 Khz to 25 Mhz enable optimum matching to probe characteristics. Two independent flaw gates with real-time analog and TTL outputs provide maximum applications versatility. Full 8 hours of use with "on-board" rechargeable Lithium Ion battery pack
