Exacto Pit Depth Gauge Digital Kit (PGD1200)

    Exacto Pit Depth Gauge Digital Kit
    Starting at:

    $515.00 1. Quote Required


    What does this package include?
    • Product Code:
    • Original Code:
    • Tech Support Available
    • Product Weight: 3.00

       Hours:   8:00 am to 4:30 pm CST

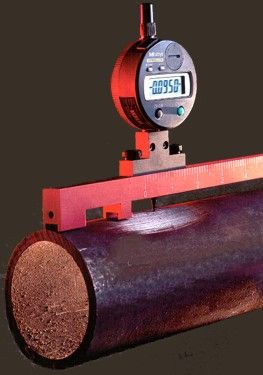

    Exacto Pit Gauges are designed for ease of use, accuracy, and repeatability in the inspection of oil, water, and gas line integrity. The PGD1200 includes a 12" bridge to effectively span the pit to be assessed. Corrosion profiles can be plotted quickly and accurately by moving the dial indicator along the bridging bar. Notched feet prevent the bridge from rocking on a rounded surface. Ceramic magnets securely hold the gauge in place, a definite bonus when working upside-down.

    The left-handed scale measures increasing depth as the tip drops into the pit. A locking adjustment screw allows instant calibration to a reference surface. Thumbscrews facilitate one-handed operation. NIST Certification and ISO 17025 Certification are available with options in delivery.

    Package Includes

    Exacto PGD1200 Digital Pit Gauge Kits include:

    • 12"  bridging bar
    • Extension rods up to 10"
    • Protective molded insulated case
    • Instruction sheet
    • Digital indicator
    • Conical contact tip
    • Allen wrench
