New Product
Dakota MultiMax - 4 Channel Bolt Tension Monitor
SKU:
MULTIMAX
$5,050.00
New product
FREE Ground Shipping
FREE Calibration
FREE Accessories
Intrinsically Safe
Intrinsically Safe
Product details
Tech support available
- Product code
- MULTIMAX
- Original Code
- Z-226-0001
- Original Code 2
- NSN
- Product weight
- 5.00
Description
The Dakota MultiMax transforms fastener monitoring by utilizing ultrasonic precision to measure bolt tension directly, removing errors caused by friction. Picture having precise accuracy and real-time data on your essential bolted joints, regardless of their location.
The Dakota MultiMax Bolt Tension Monitor provides remote, continuous measurement of fastener length changes. Seamlessly integrate it into your existing condition monitoring system with the intuitive Dakota MultiUI software. This powerful combination enables real-time condition monitoring of bolt elongation, empowering proactive maintenance and preventing costly failures. Plus, the MultiMax is easily expandable, allowing you to monitor hundreds of bolts simultaneously.
Additional Info
Package Includes
- MultiMax - 4 Channel Bolt Tension Monitor
- USB Type A to Type C Transfer/Power Cable
- Carrying Case
- PC Interface Software
- Operating Manual and Certification.

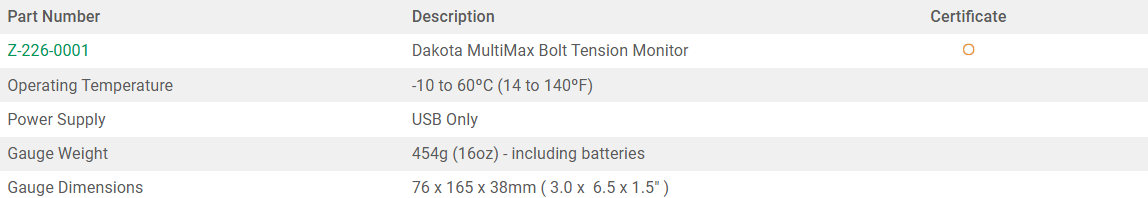

Specifications
Features
Highly Accurate Measurements: The Dakota MultiMax measures the stretch (elongation), load, stress and %strain of a fastener under tension with extreme precision.
Ultrasonic Technology: By sending an ultrasonic wave down the length of the fastener and measuring the change in transit time, the Dakota MultiMax provides accurate calculations, avoiding the limitations of torque-based methods.
Multi-Channel Efficiency: With four independent channels, the Dakota MultiMax can simultaneously monitor four bolts, increasing productivity.
Scalability: Multiple Dakota MultiMax modules can be stacked together, allowing users to monitor numerous channels from a single interface.
User-Friendly Software: The Dakota MultiUI interface software simplifies setup and monitoring of the Dakota MultiMax, and can be accessed from local or remote locations.
Remote Control: The built-in remote commander operating system enables remote control of individual modules and channels.
Customizable Interface: Users have the option to create their own UI software platform, thanks to the Dakota MultiMax's built-in operating system.
Durable and Compact: The Dakota MultiMax features an extruded aluminium body with nickel-plated aluminium end caps, meeting IP65 requirements, and weighs only 16 ounces.
Versatile Transducer Options: The Dakota MultiMax supports single element transducers from 1MHz to 10 MHz, glue-on transducers for permanent installation, and various connector types.
Automatic Features: Includes automatic zeroing, gating & display configuration.
Temperature Monitoring: Real-time temperature monitoring and compensation ensure accurate measurements.
Data Logging and Storage: Measurements can be auto stored, and data can be archived in various formats on the 4GB internal SD memory.
