Synergys LeakShooter Ultrasonic Leak Detector V2 (LKS1000-V2)

    Synergys LeakShooter Ultrasonic Leak Detector V2




    DISCONTINUED

    This product has been discontinued.
    Click Here to view the replacement product.


    • Product Code.:
      LKS1000-V2
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

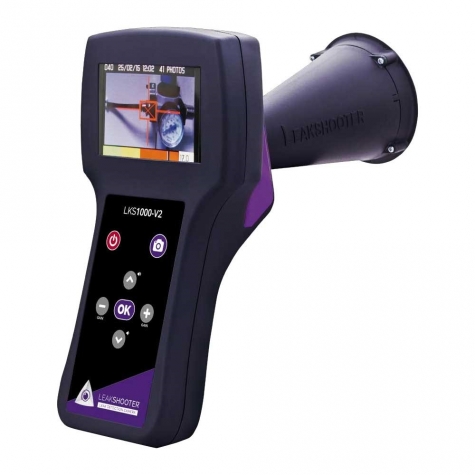

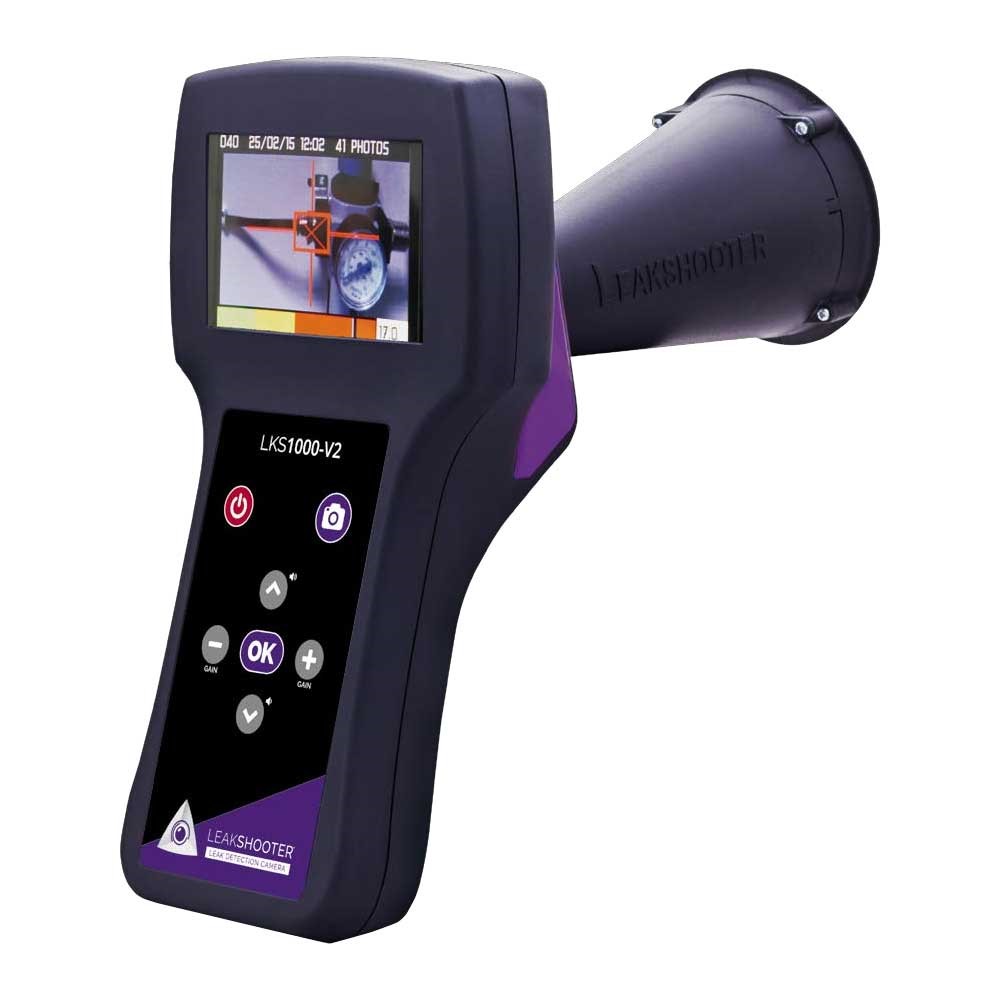

    The LeakShooter LKS1000-V2 is a revolutionary ultrasonic leak detection analyzer that uses a camera to detect leaks.

    The ultrasonic technology embedded in the LeakShooter LKS1000-V2 records in real-time the exact location of compressed air, gas and vacuum leaks with pictures that can be downloaded to a computer using LEAKVIEWER software. The LeakShooer LS1000-V2 can hear, see, measure and document the exact location of leaks and each image shows the date, time, db level of each leak (images can be individually numbered).

    The Lekashooter LKS1000-V2 Ultrasonic Leak Detector finds leaks and translates them to a lower frequency so you can hear the sounds through a headset. High frequency, short wave signal emissions are usually localized around the leak site, making ultrasonic leak detection one of the most reliable and targeted forms of leak detection available. When scanning an area with an ultrasound instrument, you will follow the sound of the leak at its loudest point. The Leakshooter LKS1000-V2 is adept at targeting gases when there is a saturation of gases or a wide variety of gases, pressurized vessels or when vacuum processes exist.

    The location of gas or air leaks will change in color (yellow or red) and size based on the severity of the leak.

    The Leakshooter LKS1000-V2 takes continuous measurements and displays the results in db, RMS and MAX levels at the bottom of the screen in a colored bar chart.

    Leak tests can prevent more severe and costly problems, so it is important to regularly monitor the air, vacuum or gas installations that you use in your operations. Many industries use compressed air as a propellant for many types of machines including automotive, hospitals, laboratories, shipping and heavy engineering plants.

    The Leakshooter LKS1000-V2 Includes:

    • Leak Detection Camera LKS1000-V.2
    • Metal Case
    • Headphones
    • Battery Charges
    • USB Cable
    • User Manual



    Small Leak No Leak Big Leak





    Videos

    Specs

    Sensitivity

    Detect a leak of 0.1mm at 3 bars at 20m

    Camera

    Colour 640x480  pixels

    Display

    LCD colour 3,5" 320x240 pixels

    Pictures

    JPEG, number date and time

    Dynamic Target

    Red square with cross on strong  leak

    Yellow square with cross on light leak

    Measurements

    dB RMS and MAX

    Memory

    Up to 1000 pictures, can be downloaded to PC

    Communication

    USB cable supplied

    US sensor

    Open type

    Bandwidth +/- 2kHz à -6 dB

    Central frequency 40kHz +/- 1kHz

    Adjustable frequency mixer from 34 to 46 kHz

    Auto gain, and adjustable from 50 to 110 dB

    Headset

    Adjustable volume from 0 to 10

    Power supply

    Lithium-ion rechargeable battery

    Autonomy

    6 hours

    Temperature range

    -10°C to + 50°C

    Dimensions

    230mm x 100mm x 70mm

    Weight

    580g LKS1000 alone, with metallic case 3,9 kg

    Software

    LEAKVIEWER picture download

    Standards CE

    CEM 2004/108/CE: EN61000-6-4 & EN61000-6-2

    Accessories

    LKSFLEX Flexible 400mm US sensor

    LKSPROBE Mechanical US sensor

    LKSCOVER Holster
