Proceq Equotip Live Leeb D Portable Hardness Tester (35810011)

Proceq Equotip Live Leeb D Portable Hardness Tester
Starting at:

$4,935.00



This product has been discontinued.


  • NEW Product
  • Product Code.:
    35810011
  • Tech Support Available
  • Product Weight: 5.00

HAVE A QUESTION?
   Hours:   8:00 am to 4:30 pm CST

Description

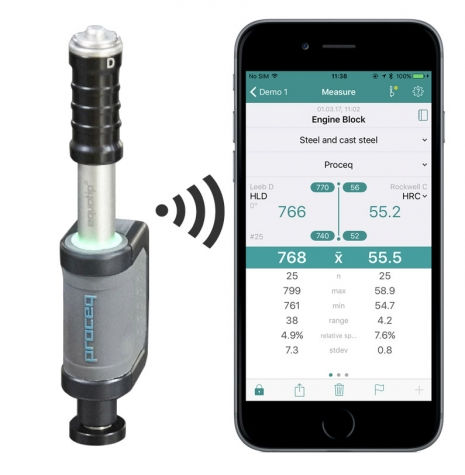

The Proceq Equotip Live Leeb D portable hardness device is web-enabled and allows wireless sharing of your hardness measurements in real-time, worldwide. With the intuitive Equotip App you can measure and store data across any hardness scale directly to your to any iOS enabled device, including Apple watches. The unit has a clean user interface and an auto-sync feature that allows you to transfer data anywhere. Reports can be shared via email or electronically to any device you choose.

Ultra-portable, the Proceq Equotip Live Leeb D device allows multiple users to share the same impact device and multiple devices can connect to the Equotip Live app.

The Equotip Live app simplifies hardness testing through an expert-designed, intuitive interface, predefined shortcuts for fast measurements and operation, audio reading outputs for hands-free operation of your app device and on-screen guides that walk you through its operation.

Equotip Live also allows for centralized reporting through an online portal (live.proceq.com), including profile management, data history and logging, and continuous cloud backup so you will always have access to your readings.

Features

Equotip® Live Leeb D with its patented design offers many features including:

  • Wireless Connectivity
  • Real-time Data Sharing
  • Expert-designed, clean user-interface including predefined shortcuts for fast measuring and handling
  • Cloud Backup for Data
  • Ability to share reports in real-time worldwide
  • Logbook for full data traceability
  • Audio output of readings allow you to keep mobile device hands-free
  • Ability to add media to measurements
  • Suitable for confined spaces

The unit has the following physical features and benefits:

  • Mounting ring for easy and secure carrying
  • AAA battery compartment
  • Exchangeable support ring
  • Compatible with existing Proceq accessories
  • Multi-color LED ring with status indication
  • Slip proofed rubber and IP 54 sealed housing
  • Removable Bluetooth 4.0 low energy module - Internet of Things (IoT)
  • USB connector for charging and firmware updates
  • On/Off button
  • Loading grip - innovative loading grip for safe operation

Applications:

Standard to large objects

Yes

Round objects

In combination with support rings

Light objects

No

Very hard objects

No

Cast objects

No

Polished objects

No

Limited accessibility

No

Additional Applcations:

Fire damage assessment
Marine industry
Transmission gears
Rolling mills
Thermal cutting
Testing of rail welds in combination with flaw sizing
For Internet of Things (IoT) and Industry 4.0 environments
Flanges, engine blocks, shafts, gears, landing gears, rolls, coils, bars, pipes and heat treated components

Videos

Specs

Proceq Equotip Live Leeb D Model Specifications

Native Scale

HL

Measuring Range

150 - 950 HL

Measuring Accuracy

± 4 HL (0.5% at 800 HL)

Available Scales

HB, HV, HRB, HRC, HS, MPA

Available Probes

Leeb D

Average Roughness Ra (µm / µinch)

2 / 80

Minimum Mass (kg / lbs)

0.05 / 0.2

Minimum Thickness (mm / inch)

3 / 0.12

Standards & Guidelines

Standards

ASTM A 956
ASTM E 140
ASTM A 370
ISO 16859
JB/T 9378
GB/T 17394
DIN 50156

Guidelines

ASME CRTD-91
DGZfP Guideline MC 1
VDI / VDE Guideline 2616 Paper 1
Nordtest Technical Reports 424-1, 424-2, 424-3







Scales

Units

Range

Measuring
Range

Steel and cast steel

Vickers
Brinell
Rockwell

Shore
Rm N/mm²

HV
HB
HRB
HRC
HS
σ1
σ2
σ3

81-955
81-654
38-100
20-68
30-99
275-2194
616-1480
449-847

Cold work tool set

Vickers
Rockwell

HV
HRC

80-900
21-67

Stainless steel

Vickers
Brinell
Rockwell

HV
HB
HRB
HRC

85-802
85-655
46-102
20-62

Cast iron lamellar graphite GG

Brinell
Vickers
Rockwell

HB
HV
HRC

90-664
90-698
21-59

Cast iron, nodular graphite GGG

Brinell
Vickers
Rockwell

HB
HV
HRC

95-686
96-724
21-60

Cast aluminium alloys

Brinell
Vickers
Rockwell

HB
HV
HRB

19-164
22-193
24-85

Copper/zinc alloys (brass)

Brinell
Rockwell

HB
HRB

40-173
14-95

CuAI/CuSn-alloys (bronze)

Brinell

HB

60-290

Wrought copper alloys, low alloyed

Brinell

HB

45-315

 » Other combinations possible through custom conversions

Test
Piece
Requirements

Surface preparation

Roughness grade class ISO 1302

N7

Max. roughness depth Rt (μm / μinch)

10 / 400

Average roughness Ra (μm / μinch)

2 / 80

Minimum sample mass

Of compact shape (kg / lbs)

5 / 11

On solid support (kg / lbs)

2 / 4.5

Coupled on plate (kg / lbs)

0.05 / 0.2

Minimum sample thickness

Uncoupled (mm / inch)

25 / 0.98

Coupled (mm / inch)

3 / 0.12

Surface layer thickness (mm / inch)

0.8 / 0.03

Indentation size on test surface

With 300 HV, 30HRC

Diameter (mm /
inch)

0.54 / 0.021

Depth (μm / μinch)

24 / 960

With 600 HV, 55HRC

Diameter (mm /
inch)

0.45 / 0.017

Depth (μm / μinch)

17 / 680

With 800 HV, 63HRC

Diameter (mm /
inch)

0.35 / 0.013

Depth (μm / μinch)

10 / 400




Additional Info

Package Includes

  • Equotip Live Leeb D Basic Impact Device
  • Equotip impact body D/DC
  • Support ring D6
  • Equotip Live bluetooth module and full connectivity to mobile device
  • Micro USB cable
  • Cleaning brush
  • Rechargeable AAA battery
  • Documentation
  • Carrying strap and carrying case
  • 2 year reporting feature included
