Waygate Krautkramer USM Go+ Ultrasonic Flaw Detector AWS Weld Kit (100N3823)

    Waygate Krautkramer USM Go+ Ultrasonic Flaw Detector AWS Weld Kit


    Quote Required Quote Required

    IN STOCK

    This product has been discontinued.


    • Product Code.:
      100N3823
    • FREE Ground Shipping
    • Tech Support Available
    • Product Weight: 12.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    The Waygate Technologies Krautkramer USM Go+ Ultrasonic Flaw Detector AWS Weld Kit, a Baker Hughes business product (formerly GE Inspection Technologies), is a complete UT flaw detection system that comes with the standard DAC, AWS, and SWP configurations.

    The package also includes an AWS Gamma probe and 3 AWS wedges (45°, 60°, and 70°) to assist in weld flaw detection, all at varying angles to increase Probability of Detection within AWS standards.

    This Waygate USM Go+ AWS Weld Kit offers all of the benefits of the current USM Go+ models, including:

    • Portability - Small size and weight allow the instrument to be easily operated in confined spaces and areas of difficult access.
    • Long-Lasting Power - Battery provides up to 5.5 hours of operation. Can be recharged on- or off-board.
    • Easy-to-Read Screen - An 800x480 pixel display, which is better resolution than a standard DVD.
    • Ease of Use - Features one-hand operation, leaving the other hand free for other tasks, such as maintaining probe in optimum position or holding onto ladders. All controls are within fingertip reach. User can dedicate four function keys according to preference.
    • Right or Left Handed Operation - A "Flip" function allows the instrument to be used equally well by left-handed and right-handed people.
    • Versatile and Upgradeable - Customized versions of the USM Go+ are also available, specially adapted to meet specific inspection codes or applications. For example, an optional square wave pulser can be supplied for applications involving the inspection of highly attenuative material, such as castings and forgings.
    • A Wide Range of Applications - Weld Inspection, Inspection of Forgings and Castings, Inspection of Rails, Inspection of Composites

    Features

    • Truly ambidextrous flip function
    • Wide VGA color LCD display: 5.0” diagonal screen size, 800 x 480 pixels
    • Arrow Keypad Operation
    • Weighs less than 2 lbs. with battery
    • Auto Calibration of Material Velocity and Probe Zero
    • Trigonometric flaw location calculations with Curvature Correction for weld inspection
    • Color Leg Indicator in “live” A-scan for angle beam work
    • 2 Independent Flaw Monitor Gates
    • Selectable 15 to 2000 Hz Pulse Repetition Rate
    • Auto-80 for easy 80% amplitude reference
    • IP67 sealing
    USM Go+
      Base Standard Std. w/DGS Advanced
    Features/Unit GEIT1480176
    GEIT1480176C
    GEIT1480179
    GEIT1480179C
    GEIT1480181
    GEIT1480181C
    GEIT1480180
    GEIT1480180C
    DAC   X X X
    JISDAC   X X X
    JFLANK   X X X
    Square Wave Pulser   X X X
    DGS     X X
    Phantom PRF       X
    Thickness Data Recorder       X
    Third Gate       X

    Videos

    Specs

    Display 5", 800 x 480 pixels, 108 × 65 mm (W x H), >200 cd/m2
    Size (W x H x D) 175 x 111 x 50 mm
    Weight 850 g with battery
    Protection Class IP 67
    Operating Temperature 0 – 55 °C
    Battery Li-Ion, rechargeable, 6 hours operation time
    Power Adapter/Charger 100 – 240 V AC, 50/60 Hz
    Probe Connector 2 x Lemo-00 (T/R)
    PC Interface Mini USB
    Memory Card SD-Card 16 GB max
    Reporting Test report and A-Scan screen shot on SD-Card, Video recording of A-Scan
    Pulser 120 – 300 V, 30 – 500 ns, flank < 10 ns, Spike, Square wave option
    Pulse Repetition Frequency 15 – 2000 Hz
    Damping 50 and 1000 Ohm
    Reciever 110 dB dynamic, 0.5 ~ 18.5 MHz analog bandwidth
    Filter BB
    1-5 MHz, 2,25 MHz, 4 MHz, 5 MHz, 10 MHz, 13 MHz, 15 MHz
    Gates A and B independent, B triggered by A, C option

    Package Includes

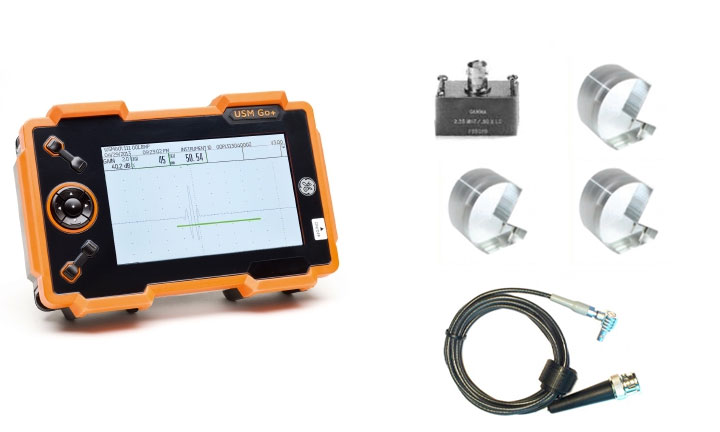

    USM Go+ AWS Kit Includes:

    • USM Go+ Standard (DAC, AWS, SWP) - GEIT1480179
    • AWS Gamma Transducer 2.25 MHz x 0.625" x 0.75" - 113-292-601
    • AWS Wedge 45° - 118-340-104
    • AWS Wedge 60° 118-340-105
    • AWS Wedge 70° 118-340-106
    • CBL-822 Right Angle Lemo-00 to BNC Cable - 022-509-822
    • Lithium Ion “on-board” rechargeable battery pack
    • Lithium Ion battery charger /AC power supply
    • Protective LCD Screen Overlays (pkg. 10), clear, field replaceable
    • SD Card (2 GB)
    • Transport Case
    • Hand Strap
    • Quick Reference Operating Card
    • Operating Manual on CD
    • ISO 17025 Certificate of Calibration
