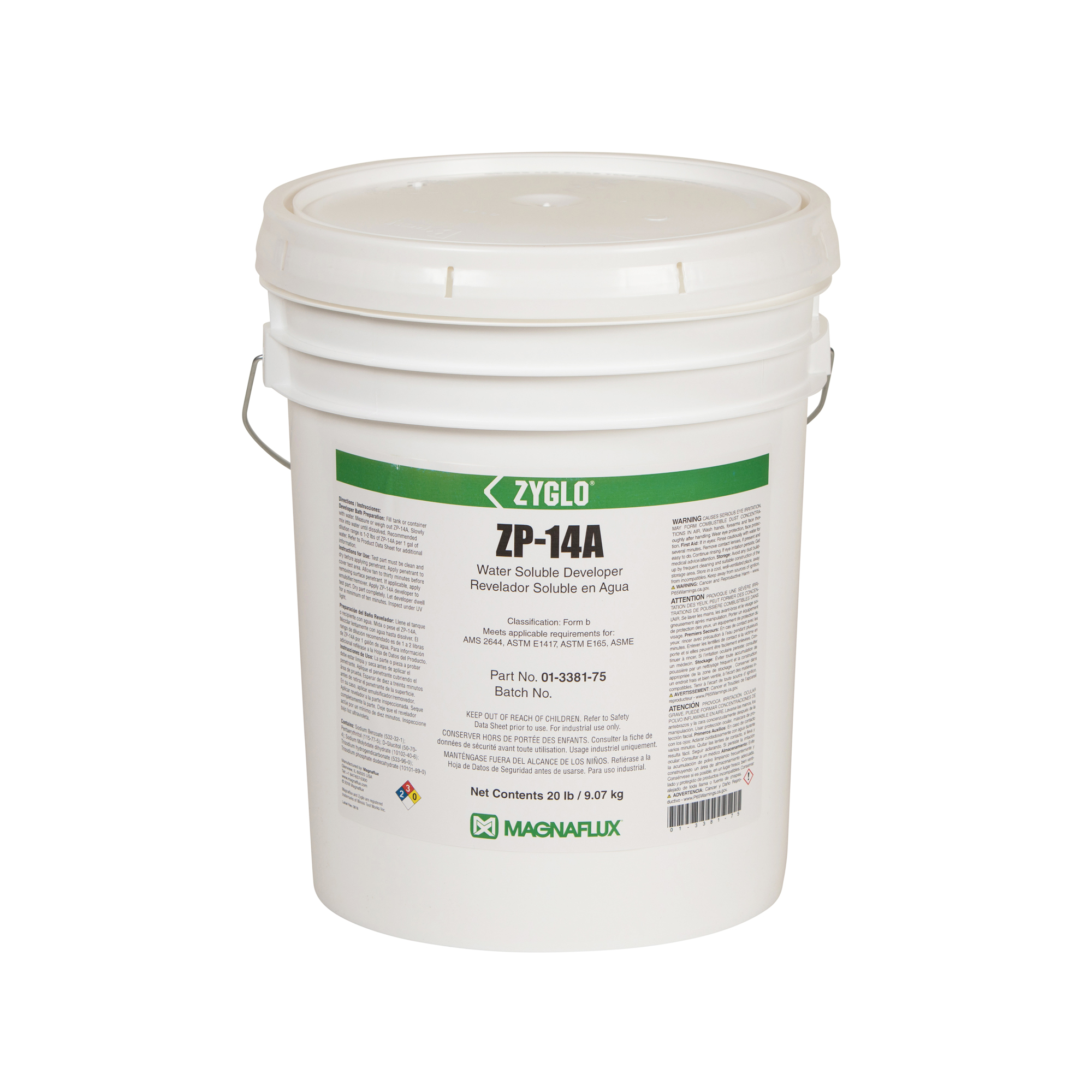

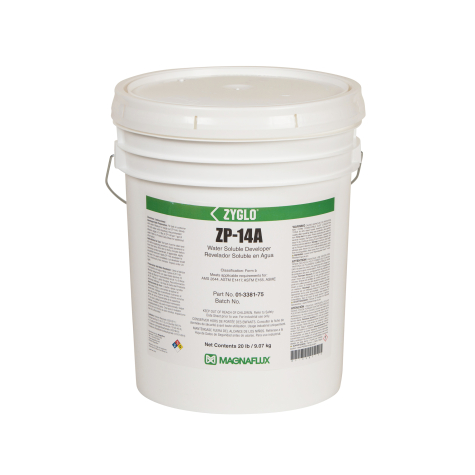

MagnaFlux Zyglo ZP-14A Water Soluble Developer

ZP-14A is a water-soluble developer for the enhancing penetrant indications during liquid penetrant inspections. It produces a uniform white porous coating when dry which is easily removed in post inspection cleaning by a water spray. Advantages include bright and highly defined indications, and can be cleaned with water.

This white free-flowing powder dissolves in water to form a developer solution and does not require agitation once the developer bath is prepared.

ZP-14A is recommended for use with Level 2 ZL-2C, Level 3 ZL-27A and Level 4 ZL-37 post-emulsifiable penetrants.

ZP-14A is listed on the QPL SAE AMS 2644 Qualified Product List.

APPLICATIONS: Castings, Forgings, Machined components

DEFECT EXAMPLES: Cracks, Porosity

SPECIFICATIONS COMPLIANCE: AECL, AMS 2644, AMS 2647, ASME, ASTM E1417, Boeing BAC 5423 PSD 6-46 or 8-4, GE P3TF2, QPL SAE AMS 2644

Product Data Sheet

Safety Data Sheet

• Bright, highly-defined indications

• Can be cleaned off with water

• Even, uniform coverage

• QPL SAE AMS 2644 Qualified Product List
