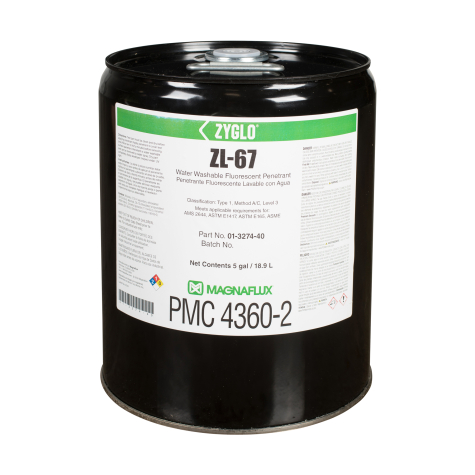

Magnaflux Zyglo® ZL-67 Water Washable Fluorescent Penetrant (01-3274)

    MagnaFlux Zyglo ZL-67 Water Washable Fluorescent Penetrant
    Starting at:

    $582.00 1. Quote Required



    • Product Code:
      01-3274
    • Tech Support Available
    • Product Weight: 46.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Overview

    BERG ENGINEERING & SALES COMPANY, INC.

    The Magnaflux Zyglo® ZL-67 Water Washable Fluorescent Penetrant is safe for use on aluminum, steel, nickel, titanium and other alloys. The ZL-67 classifies as a Type 1, Method A, water washable, non water based, Level 3 penetrant with a high penetrant sensitivity level of 3.

    Recommended viewing is under an ultraviolet light with a wavelength of 365 nanometers. An example of this would be the Magnaflux® ZB-100F fan-cooled black light. Under UV light, the ZL-2C glows a bright greenish-yellow.

    Applications for the ZL-67 inspections on investment castings, jet engine components and other highly machined surfaces in order to detect cracks, seams and other defects.

    The ZL-67 complies with AMS 2644, ASME B & PV Code, Sec. V, MIL-STD-271, MIL-STD-2132, Boeing BAC 5423 PSD 6-46 or 8-4, General Electric P50YP107, Boeing PS-21202, ASTM E 165, AECL and ASTM E 1417.

    Description

    ZL-67 fluoresces a bright greenish-yellow under ultraviolet radiation and is safe for use on most engineering and aerospace alloys including aluminum, steel, nickel and titanium. Use of an ultraviolet light source with a peak wavelength of 365 nanometers, such as the Magnaflux ZB-100F fan-cooled black light, is recommended.

    ZL-67 penetrant meets OSHA requirements for Class III B liquids due to its high flash point and can be used in open dip tanks.

    Specifications Compliance:

    AMS 2644, ASME B & PV Code, Sec. V, MIL-STD-271, MIL-STD-2132, Boeing BAC 5423 PSD 6-46 or 8-4, General Electric P50YP107, Boeing PS-21202, ASTM E 165, AECL, ASTM E 1417

    Applications: Zyglo® ZL-67 is typically used on critical applications including investment castings, jet engine components, and highly machined surfaces to find cracks, seams and porosity.

    Classification: Type 1, Method A, Water Washable (Non-Water-Based) Penetrant, Level 3



    Sensitivity Level: Level 3 - High Sensitivity
