GAL Radius Gauge Set, 2.5" - 30" (RG-750)

GAL Radius Gauge Set, 2.5" - 30"
Starting at:

$215.00 1. Quote Required



This product has been discontinued.

ADD TO CART

Share this product
  • Product Code.:
    RG-750
  • Tech Support Available
  • Product Weight: 4.00
HAVE A QUESTION?
  Call:   1-847-577-3980
  Send an Email
   Hours:   8:00 am to 4:30 pm CST

Description

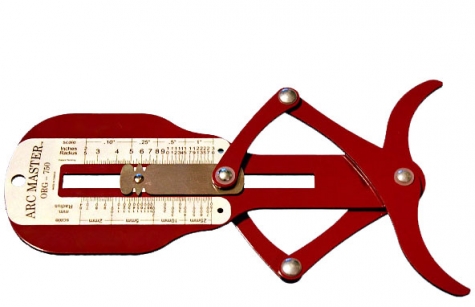

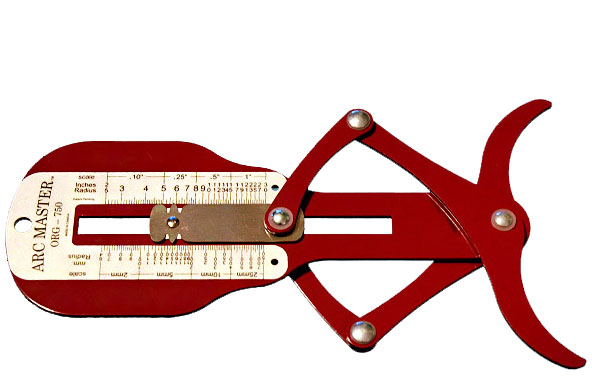

The GAL Radius Gauge Set includes the IRG-750 and ORG-750 gauges ideal for taking measurements on surfaces like large pipes, metal rolling and fabrication, and measuring large tanks. The Radius Gauges measure the inside and outside radius and diameter of cylindrical objects. Both Gauges have a measuring range of 2.5" (64 mm) to 30" (750 mm) with a tolerance of ±0.5%. The 750 Gauges come with sliding tension, which holds the gauge in place after measurement has been taken. Imperial and Metric units are shown on the gauge.

Features

  • Quick measurement of inside and outside radius on cylindrical objects
  • Sliding tension holds mechanism in place until moved back

Specs

Model IRG-750 & ORG-750
Measuring Range 2.5" (64 mm) to 30" (750 mm)
Tolerance ± 0.5%
Measurement Type Imperial and Metric

Package Includes

  • IRG-750 Inside Radius Gauge
  • ORG-750 Outside Radius Gauge
