Foerster Magnetoscop-1.070 (Magnetoscop-1.070)

Foerster Magnetoscop-1.070
Starting at:

$19,228.00


List Price Including Tariff Charges

This product has been discontinued.


  • NEW Product
  • Product Codes:
    2084945
  • Tech Support Available
  • Product Weight: 2.00

HAVE A QUESTION?
   Hours:   8:00 am to 4:30 pm CST

Description

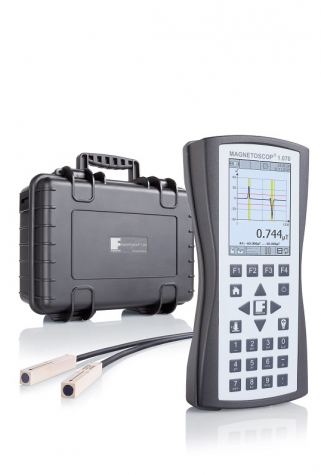

Foerster Magnetoscop 1.070 Portable Magnetometer

  • Compact, lightweight measuring instrument
  • 3,5“ color display
  • Clear menu structure for operator guidance
  • Data logging function
  • Connection of 1-axis-magnetic field sensor, 3-axis-magnetic field sensors as an option
  • Connection of permeability probes
  • Trigger input
  • Temperature measuring channel
  • USB, mini USB and SD card interfaces
  • Power supply by batteries, battery pack or mains adapter



Features

Features:

  • Portable, microprocessor controlled magnetometer system
  • Probes for the measurement of the magnetic flux density as absolute or gradient value
  • Probes for determination of the relative magnetic permeability μr in accordance with IEC 60404-15 und ASTM A342/A342M
  • USB interface for data transfer
  • SD card for storage of measurement data and parameters
  • Peak value detection and storage
  • Adjustable limits for threshold values
  • Visual and acoustic alarm
  • Single or batch measurement
  • Editable measuring- and test procedures including graphical operator assistance
  • Battery or mains operated
  • PC software for data analysis and report generation

Videos

Additional Info

Package Includes

Permeability Measuring Kit Includes:



  • 1 Operating instructions short 2081326
  • 1 Magnetoscop 1.070 measuring device 1991892
  • 1 Probe PP-2-5 2061392
  • 1 reference std, mu=1.05 2075296
  • 1 Adapter PP-2-5 f/reference check 2075270
  • 1 USB cable 2m 0377244
  • 1 Protective cap long 2069830
  • 1 Protective cap - probe socket 2069792
  • 1 Magdata sw + op inst 2085070
  • 4 Battery mignon cell 0087700
  • 1 Carrying case 2069857
  • 1 Power supply 1863843
