PH Tool Mini Resolution Block Inch, Type 304 Stainless Steel (MINIRB.ISS)

    PH Tool Mini Resolution Block Inch, Type 304 Stainless Steel
    Starting at:

    $1,446.00 1. Quote Required



    This product has been discontinued.


    • Product Code.:
      MINIRB.ISS
    • Original Code:
      MINIRB-ISS
    • Tech Support Available
    • Product Weight: 2.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description



    Used for checking resolution capabilities and calibratinhigh-resolutionon test equipment.

    Inch

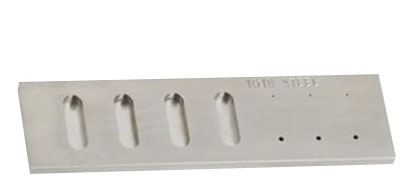

    Contains four 0.188 wide x 0.625 long milled slots to simulate flat plate reflectors at metal travel distances of 0.015, 0.020, 0.025 and 0.030. Also contains six flat-bottom holes, three each with diameters of 1/64 and 3/64 at metal travel distances of 0.020, 0.025 and 0.030.

    • Dimensions: 3.625 x 1.000 x 0.125
    • Fitted wooden storage case optional...see above.
