Tramex Moisture Encounter MEX5 (MEX5)

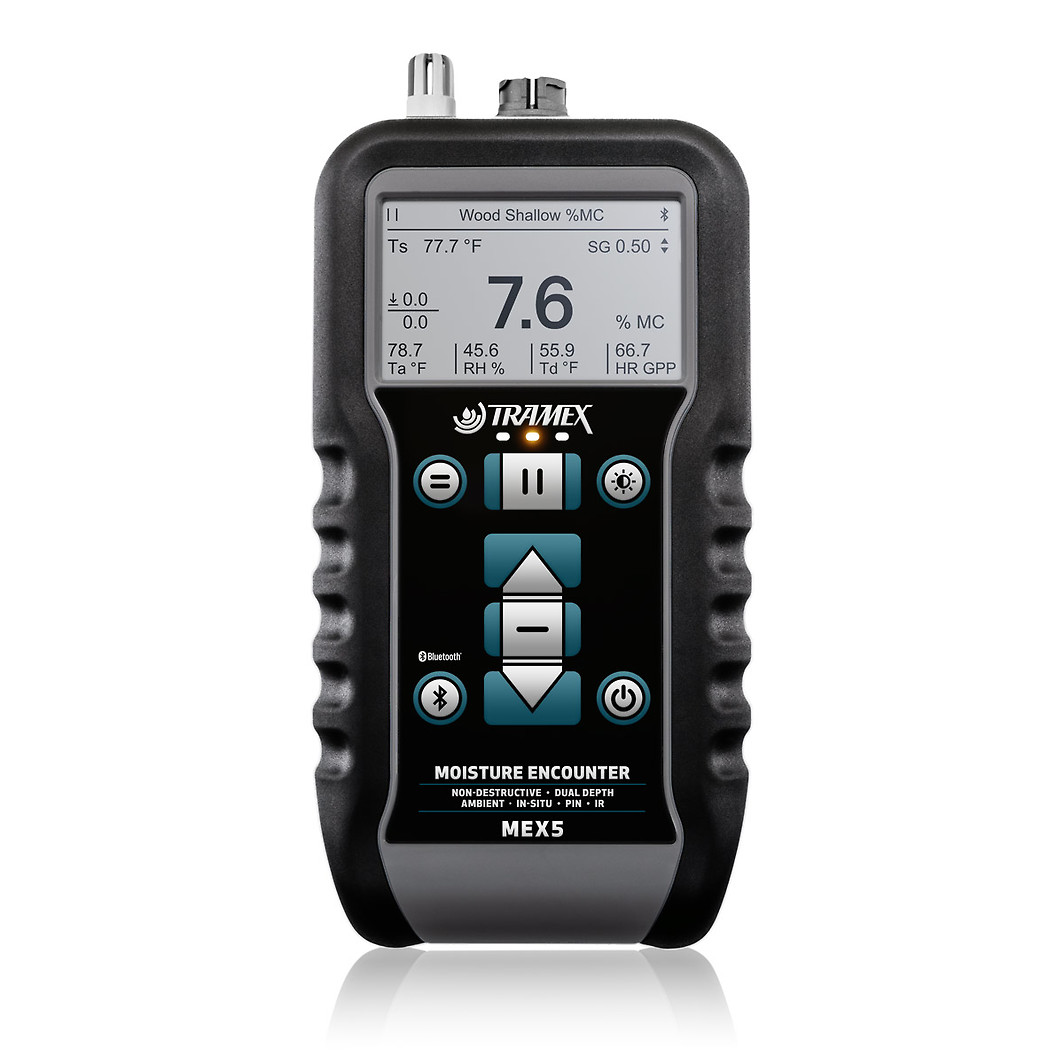

Tramex Moisture Encounter MEX5
Starting at:

$1,020.00 1. Quote Required



This product has been discontinued.


  • Product Code.:
    MEX5
  • Tech Support Available
  • Product Weight: 0.00

HAVE A QUESTION?
   Hours:   8:00 am to 4:30 pm CST

Description


The Tramex Moisture Encounter MEX5 is a digital Dual-Depth, non-destructive moisture and humidity meter, ideal for surveying moisture and humidity conditions in building structures.

The MEX5 measures moisture in wood and drywall and offers comparative readings for materials like roofing, plaster, tile, and masonry. It includes a built-in hygrometer for ambient conditions, an infrared surface thermometer, and optional external probes for in-situ RH and pin probes for wood and drywall. These features make the MEX5 essential for professionals in building moisture inspection and restoration.

Dual Depth Measuring Range
The MEX5 moisture meter features dual depth measuring range. Deep Depth penetration of up to 1¼" (30mm) and Shallow Depth penetration of up to ⅜” (9mm).

The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.

The pinless moisture meter measures moisture content % of wood from 0-30%. The meter can be expanded with the use of pin probes for wood, wood by-products and drywall as well as relative humidity sensor probes for evaluating ambient conditions.

NDT - Non Destructive Testing
  • %MC dual depth measurement of wood
  • Comparative dual depth of drywall, roofing, plaster, tile and masonry
  • Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
  • LED indicator Low/Med/High for all NDT scales
  • Built-in Hygrometer readings on permanent display
  • Built-in Surface Temperature Infrared Thermometer
  • Adjustable Specific Gravity for NDT wood readings
  • Baseline reference reading set point adjuster to compare to known dry / drying goal reading

Built-in Hygrometer & Infrared Surface Thermometer
  • Psychrometric evaluations of Ambient RH, Temp, Dew Point Temp, Humidity Ratio (GPP, g/kg)
  • Surface Temperature
  • Delta Temperature value
  • Enthalpy readings
  • Emissivity adjustment for surface temperature correction\

Pin Probe (optional plug-in probe)
  • Variety of external pin probes and electrodes can be used
  • %MC wood, pre-set international standards / access to various preset wood species
  • WME readings
  • Drywall %MC
  • Auto calibration check
  • Temperature correction of %MC in wood
  • EMC Expected Moisture Content indication based on ambient conditions

In-Situ Equilibrium RH Probe (optional plug-in probe)
  • Variety of external RH probes can be used:
  • In-situ RH probes for concrete moisture testing
  • In-situ RH for probes for the building envelope, building materials, insulation, crawl spaces, HVAC systems.

Videos

Specs

Size: 7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm)
Weight: 10.22 oz (290g)
Construction: ABS Body
Power: 2 x AALR6 ALKALINE (included)
Display: Digital 2.3" x 1.4" (58mm x 35mm)
Depth of penetration: Shallow signal: up to ⅜” (9mm)
  Deep signal: up to 1¼" (30mm)

Measuring Range of MEX5 Moisture Meter:
NDT Moisture content for Wood: 0 → 30% MC
NDT Comparative for Building Materials: 0 → 100
Pin % MC  Wood: 6 → approx 50% MC
Pin % MC Drywall: 0 → 8.5% MC
Relative Humidity: 0 → 99%
(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
