Ultrasonic Thickness Probes and Cables

GEIT FH2E Fingertip Probe, 7.5 MHz, 0.38"" Contact Dia. w/Potted Cable Code: 113-552-005	GEIT FH2E-D Fingertip DIALOG Intelligent Probe, 7.5 MHz,0.38” Contact Dia. with Potted Cable Code: 113-552-007	GEIT FH2E-D-REM Fingertip DIALOG Intelligent Probe with built-in Remote Send Key, 7.5 MHz,0.38” Cont Code: 113-552-009

GEIT FH2E-WR Wear-Resistant Fingertip Probe, 7.5 MHz,0.55” Contact Dia. With Potted Cable Code: 113-552-006	GEIT DM-401-GP General Purpose Probe, DIALOG Intelligent,Probe, 5 MHz, 0.70"" Contact Dia., Right An Code: 113-544-215	GEIT DM-401-GP-REM General Purpose Probe w/ remote send ,DIALOG Intelligent Probe, 5 MHz, 0.70" Cont Code: 113-544-217

GEIT DM-411-GP General Purpose Probe, DIALOG Intelligent Probe, 5 MHz, 0.70" Contact Dia.Top Mount Code: 113-544-218	GEIT HT400 High Temperature Probe, 5 MHz, 0.50”Contact Dia. (Ambient to 1,000 Degrees F) Code: 113-524-760	GEIT KBA525 Small Footprint Thin Materials Probe,10 MHz, 0.20” Contact Dia.,with Potted Cable Code: 113-516-002

GEIT DP-104 Penetrator Probe, 1 MHz, 1.25"" Contact Dia.(Requires KBA532 Cable) Code: 113-561-104	GEIT FHUR Cylinder Bore Probe with 2.0” radius Code: 113-570-000	GEIT KBA560 General Purpose Probe, 5 MHz,0.63"" Contact Dia. (Requires KBA531 Cable) Code: 113-544-210

GEIT KBA560-D General Purpose DIALOG Intelligent Probe,5 MHz, 0.63” Contact Dia Code: 113-544-213	GEIT KBA560-WR Wear-Resistant General Purpose Probe5 MHz, 0.70” Contact Dia.(Requires KBA531 Cable) Code: 113-544-212	GEIT KBA560V Elevated Temperature Probe (Up to 750?F)5 MHz, 0.50” Dia. (Requires KBA531 Cable) Code: 113-544-230

GEIT TC560 TopCOAT Probe, for DMS 2 TC instrument 5 MHz, 0.63 Contact Dia."** Code: 113-544-214	GEIT KB550FH Fingertip Probe, 5 MHz, .25” Diameter with Potted Cable Code: 113-550-001	GEIT KB550BTH Boiler Tube Probe, 5 MHz, .25” Diameter (Requires C-BTH Cable)" Code: 113-550-003

GEIT CA211A Alpha, 5 MHz, .75" Contact Dia., Contact Probe (Requires C-604 Cable) Code: 113-544-000	GEIT Alpha-2DFR Alpha, 5 MHz, .50” Contact Dia., Contact Probe (required C-604 Cable) Code: 113-527-660	GEIT FH2E-M Small Footprint Fingertip Probe, 7.5 MHz 0.28” Contact Dia., with Potted Cable Code: 113-552-010

GEIT HT400A High Temperature Probe, 5 MHz, 0.50” Contact Dia. (Ambient to 1,000 Degrees F) Code: 113-224-760	GEIT CA215 Alpha, 5 MHz, .50” Contact Dia., Contact Probe (required C-604 Cable) Code: 113-124-011	GEIT Alpha DFR-P Plastics Delay Line Probe, 20 MHz,.3” Contact Dia. (Requires C-604 Cable Code: 113-118-661

GEIT Alpha 2F Alpha, 10 MHz, .38" Contact Dia., Contact Probe (Requires C-604 Cable) Code: 113-526-000	GEIT 5M5DFR 5 Mhz, 0.5” dia. Delay Line Probe Requires C-604 cable Code: 113-144-660	GEIT FH2E-DME Fingertip Probe, 7.5 MHz, 0.38"" Contact Dia.with Potted Cable (DME Only) Code: 113-552-112

GEIT FH2E-WR-DME Wear-Resistant Fingertip Probe, 7.5 MHz,0.55” Contact Dia. With Potted Cable (DME O Code: 113-552-113	GEIT DA 512 Probe, 7.5 MHz, range 0.6 to 60 mm in steel w/ Potted Cable Code: 113-552-013	GEIT DA 590 High Temperature Probe, 5 MHz C.Requires C-120 or C-123 Cable Code: 113-534-769

GEIT DA590 EN High Temperature Probe, 5 MHz Requires C-120 or C-123 Cable Meets EN specifications Code: 113-534-761	GEIT Alpha 2-A Mini-DFR Small Diameter Delay Line Probe, 20 MHz, .125" Dia. Code: 113-518-655	GEIT DA303 High Penetration Probe, 2 MHz, 0.64” Contact Dia. (Requires KBA533 Cable) Code: 083-056-905

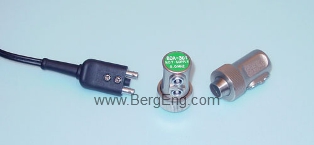

GEIT DA301 Standard Probe, 5 MHz, 0.48"" Contact Dia.(Requires KBA533 Cable) Code: 083-056-904	GEIT DA312B16 Small Footprint Thin Materials Probe,10 MHz, 0.12” Contact Dia., - fingertip style wit Code: 083-066-934	GEIT DA312B29 Small Footprint Thin Materials Probe,10 MHz, 0.12” Contact Dia., pencil style (4.5” le Code: 083-068-120

GEIT DA312 Thin Materials Probe, 10 MHz, 0.30” Contact Dia.(Requires KBA532 Cable) Code: 083-056-906	GEIT DAO.8G Penetrator Probe, 800 KHz, 1.25"" Contact Dia. (Requires KBA533 Cable) Code: 083-066-501	GEIT DA 401 Standard Probe, 5 MHz, 0.48"" Contact Dia.(Requires KBA533 Cable) Code: 083-058-637

GEIT DA403 Standard Probe, 2 MHz, 0.48"" Contact Dia.(Requires KBA533 Cable) Code: 083-058-639	GEIT DA 408 Penetrator Probe, 800 KHz, 1.25"" Contact Dia. (Requires KBA533 Cable) Code: 083-058-644	GEIT DA412 Thin Materials Probe, 10 MHz, 0.30” Contact Dia. (Requires KBA532 Cable) Code: 083-058-638

GEIT DA 451 Standard Probe, 5 MHz, 0.48"" Contact Dia.(Requires KBA533 Cable)" Code: 083-059-167	GEIT DA 458 Penetrator Probe, 800 KHz, 1.25"" Contact Dia. (Requires KBA533 Cable) Code: 083-059-169	GEIT DA 462 Thin Materials Probe, 10 MHz, 0.30” Contact Dia. (Requires KBA532 Cable) Code: 083-059-171

GEIT KBA531 Probe Cable, Straight Inst. End Connector Code: 118-140-044	GEIT DA-233 Probe Cable, straight with red/black lemo Connectors, 4 ft. length" Code: 118-140-956	GEIT KBA531A Armor Jacketed Probe Cable, Straight Inst.End Connector (for KBA560/560-D/560-TC/560-WR Code: 118-140-058

GEIT 531TC Probe Cable, Straight Inst. End Connector Code: 118-140-092	GEIT KBA531R Probe Cable, Right Angle Inst. End Connector Code: 118-140-081	GEIT KBA532 Probe Cable, Straight Inst. End Connector, no Boot Code: 118-140-095

GEIT KBA532A Armor Jacketed Probe Cable, Straight Inst. End Connector, no Boot Code: 118-140-006	GEIT KBA533 Probe Cable, Straight Inst. End Connector Code: 118-140-054	GEIT KBA535 Armor Jacketed Probe Cable (for HT400A) Code: 118-140-099

GEIT KBA536 Rubber Jacketed Probe Cable Code: 118-140-100	GEIT KBA534 Probe Cable, Straight (for DA311) Code: 118-140-078	GEIT C-104 Armor Jacketed Probe Cable, Straight, for Use of HT-400A with non-Krautkramer TG Code: 118-140-104

GEIT C-BTH Probe Cable for KB550BTH Code: 118-140-053	GEIT C-120 Probe Cable, 4 feet without Armor Jacket Code: 118-140-120	GEIT C-123 Armor Jacket Probe Cable, 4 feet Code: 118-140-123
