Berg DL Probe for RT-2H w/2 Meter Cable (D Probe) (RT-DL300A)

    Berg DL Probe for RT-2H w/2 Meter Cable (D Probe)
    Starting at:

    $1,385.00 1. Quote Required



    This product has been discontinued.


    • Product Code.:
      RT-DL300A
    • Original Code:
      RT-DL300A
    • Tech Support Available
    • Product Weight: 1.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

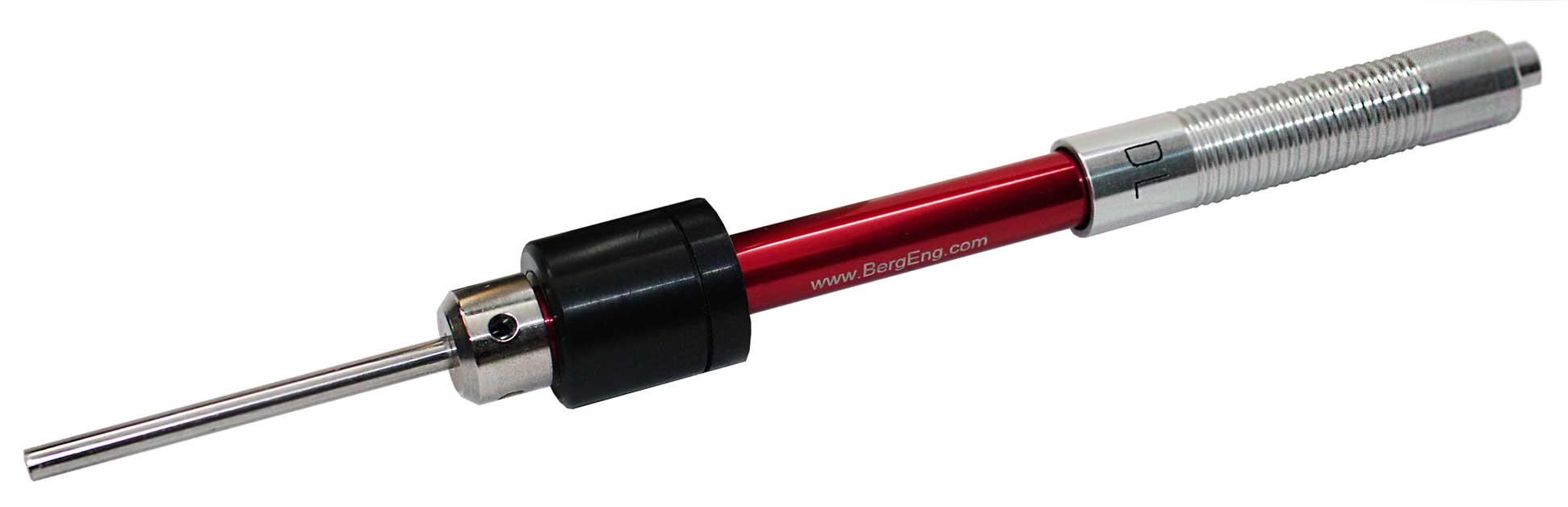

    The Berg DL Probe and Cable are for use with the Berg RT-2H Rebound Portable Hardness Tester. Cable length is 2 meters.

    (D Probe)

    Specs

    Model RT-DL300A
    Impact Device DL
    Hardness Value of Std. Leeb Hardness Block 878±30HLDL
    736±40HLDL
    Error of Displayed Value ±12 HLDL
    Repeatability of Displayed Value 12 HLDL
    Impacting Energy 11 Mj
    Test Tip Hardness: 1600 HV
    Material: Tungsten Carbide
    Diameter: 3 mm
    Impact Device Diameter: 20 mm
    Length: 86(147)/ 75 mm
    Weight: 50 g
    Max Workpiece Hardness 940HV
    Mean roughness of workpiece surface of the Ra 1.6 μm
    Min. weight of sample >5kg
    2~5kg
    0.05~2kg
    Min. thickness of sample coupling 5 mm
    Min. layer thickness for surface harden ≥ 0.8 mm
