PosiTector 6000

PDF Brochure || Comparison Chart || Accessories || Test Shims || Calibration Standards


Rugged, fully electronic coating thickness gages use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.

  • Ready to measure-no calibration adjustment required for most applications
  • One-Handed menu navigation
  • Bi-color indicator light-ideal in a noisy environment
  • RESET feature instantly restores factory settings



  • Solvent, acid, oil, water and dust resistant-meets or exceeds IP5X ingress protection
  • Wear-resistant probe tip
  • Thick, impact and scratch resistant Lexan® display suitable for harsh environments
  • Protective rubber holster with quick-release belt clip and probe storage
  • Two (2) year warranty



  • Certificate of Calibration showing traceability to NIST included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM



  • Multiple calibration adjustment options including 1 point, 2 point, known thickness and average zero
  • Calibration Lock
  • SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels (memory (3) gages only)
  • PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings (memory (3) gages only)
  • Selectable display languages
  • Flip Display for right-side-up viewing
  • Backlit display for dim or dark environments
  • Mils/Microns/mm switchable
  • Extended cables available (up to 250 ft/75 m) for remote measuring
  • All PosiTector 6000 Gages are available in your choice of Basic, Standard and Memory configurations.
  • Menu-driven user interface with multilingual support including: English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian - Screen Captures

Please choose an Item below for order information

F - for ferrous metals (steel and cast iron)
N - for non-ferrous metals (aluminum, copper, brass, etc.)
FN - for all metal substrates - Gage automatically recognizes substrate and takes measurement


PosiTector 6000 coating thickness gages, gauge use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals.
360° PosiTector 6000 Demo

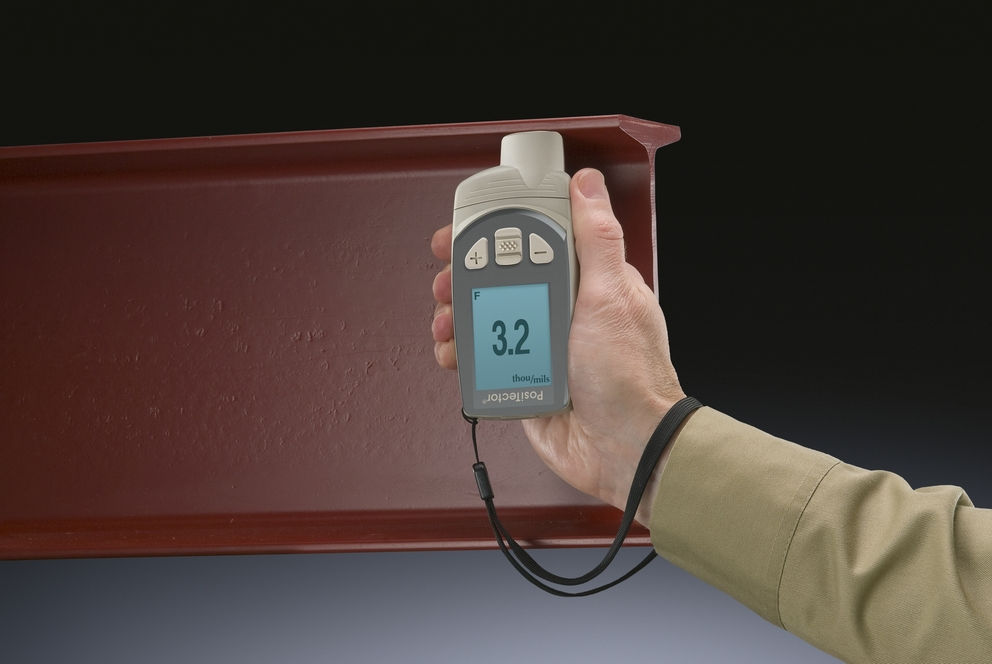

Coating Thickness Gage measures film thickness of coating applied to all metal substrates.












ORDERING
CHART

Our most popular built-in and Regular separate probe models 90 Regular probe for tight spots Ideal for anodized aluminum Microprobes - Our smallest probes for small parts or hard-to-reach areas  Built-in and Separate probes for thick protective coatings; epoxy, rubber, intumescent fire proofing and more

Click Item below shown in RED
for more
 Details

Coatings on FERROUS metals
(Steel & Cast Iron)

Standard
Advanced

ProbeOnly

F1
F3

    F

FS1
FS3

FS

FRS1
FRS3

FRS



F0S1
F0S3

F0S

F45S1
F45S3

F45S

F90S1
F90S3

F90S

FT1
FT3

 FT

FTS1
FTS3

FTS

FHXS1
FHXS3

FHXS



FKS1
FKS3

FKS


Coatings on NON-FERROUS metals (Aluminum, Copper, etc.)

Standard
Advanced

ProbeOnly

N1
N3

 N

NS1
NS3

NS

NRS1
NRS3

NRS

NAS1
NAS3

NAS

N0S1
N0S3

N0S

N45S1
N45S3

N45S

N90S1
N90S3

N90S



NKS1
NKS3

NKS


Combination
ALL METALS

Standard
Advanced

ProbeOnly

FN1
FN3

 FN

FNS1
FNS3

FNS

FNRS1
FNRS3

FNRS



FNTS1
FNTS3

FNTS





FNGS1
FNGS3

FNGS



Measuring
Range





0 - 60 mils 0 - 25 mils 0 - 250 mils 0 - 500 mils 0 - 2.5 inches
0 - 1500 um 0 - 625 um 0 - 6 mm 0 - 13 mm 0 - 63.5 mm
Accuracy** ± (0.05 mils - 1%)  0 - 2 mils

± (0.1 mils  -  1%)  > 2 mils
± (0.02 mils - 1%)  0 - 4 mils
± (0.1 mils - 3%)  > 4 mils
±( 0.5 mils - 1%)
  0 - 100 mils
±(0.5 mils - 3%)

> 100 mils
± (1 mil - 3%)
±0 - 500 mils
 ± (0.01 in. + 3%)
±(1 um - 1%)  0 - 50 um
± (2 um - 1%)  > 50 um
±(0.5 um - 1%)  0 - 100 um
±(2 um - 3%)  > 100 um

 ± (0.01 mm - 1%)  0 - 2.5 mm

±(0.01 mm - 3%)  > 2.5 mm

± (0.02 mm - 3%)
±0 -13 mm
± 0 - 0.2 mm + 3%
Matching DeFelsko Calibration Standards STD-S1
STD-A1
STD-S2
STD-A2
STD-P1 STD-P5
