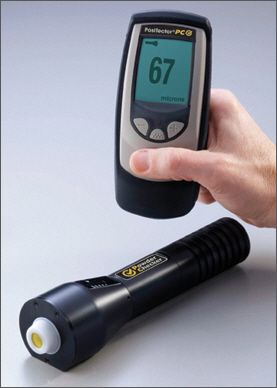

PosiTector PC Powder Checker

Affordably measures uncured powder coatings using non-contact ultrasonic technology to automatically calculate and display a predicted cured thickness.

Simple

Hand-held, battery operated
No calibration adjustment required for most powders
Thickness results appear on both base unit and probe
Bi-color indicator light—ideal in a noisy environment

Durable

Solvent, acid, oil, water and dust resistant — ideal for powder coating environments
Shock-absorbing, protective rubber holster with belt loop and magnetic mount for easy storage
Replaceable screen protects the probe
Two year warranty on both base unit and probe

Accurate

Conforms to ASTM D7378
Advanced new technology allows measurement on small tubes, odd shapes and moving parts
Easy calibration adjustment options improve accuracy on unusual powders or substrates

Versatile

Wireless probe communicates with base unit up to 10m away. (30 feet)
No cable to risk disturbing applied powder

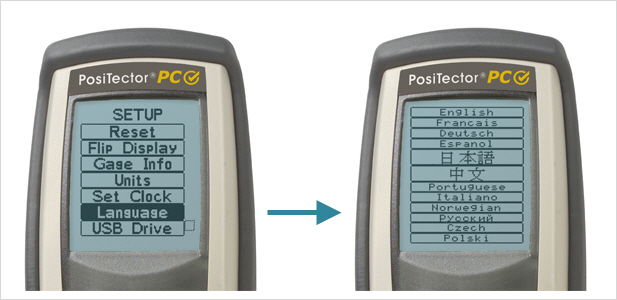

Selectable display languages
Backlit displays for dim or dark environments
Long battery life - uses standard alkaline batteries

Powerful

Continually displays/updates basic statistics including min/max and average
USB Mass Storage of 1,000 readings in up to 100 batches
Built-in IR port for printing stored results to an optional wireless printer
USB port for fast and easy connection to a PC and to supply continuous power
No download software required – gage generates formatted reports with measurement summaries and charts
Live measurement results can be sent to a data collector or spray booth controller

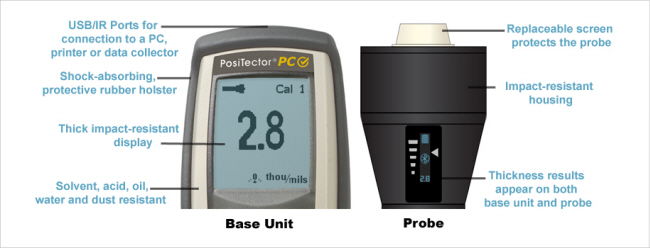

Rugged Features

The PosiTector PC Powder Checker was designed for use in industrial powder coating environments.

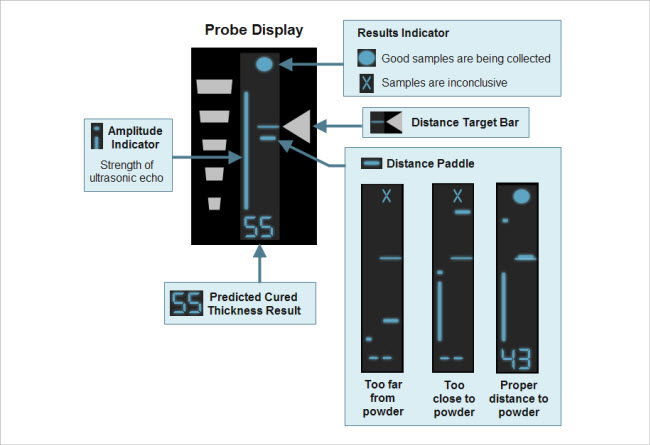

Probe Display

The following is an overview of the probe display during the measurement process (button pressed).

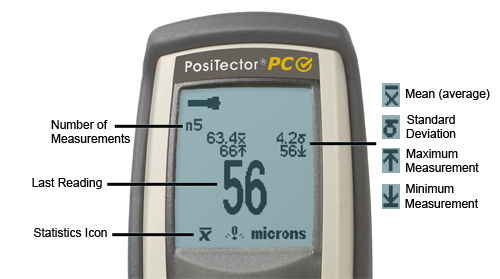

Statics

The PosiTector PC can display basic statistical information as measurements are taken. Continually displays/updates statistics including min/max and average.

Memory

The PosiTector PC can record 1,000 measurements in up to 100 groups (batches) for on-screen statistical purposes (as shown above), for printing to an optional IR printer, or for transferring to a computer using the included USB cable. Readings are time-stamped as they are taken.

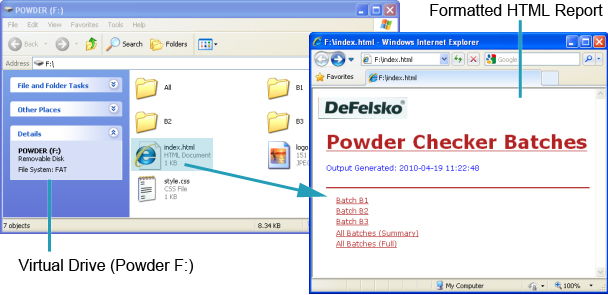

USB Mass Storage

The PosiTector PC Powder Checker uses a USB mass storage device class which provides a simple interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players.

Any computer can view and download measurements stored in memory (in batches) by navigating a virtual drive labeled POWDER using the included USB cable.

A formatted HTML report is viewed by selecting the “index.html” file found in the root directory. Additionally, delimited text files (.txt) are located in each batch folder for easy import into database, spreadsheet and other compatible applications.
